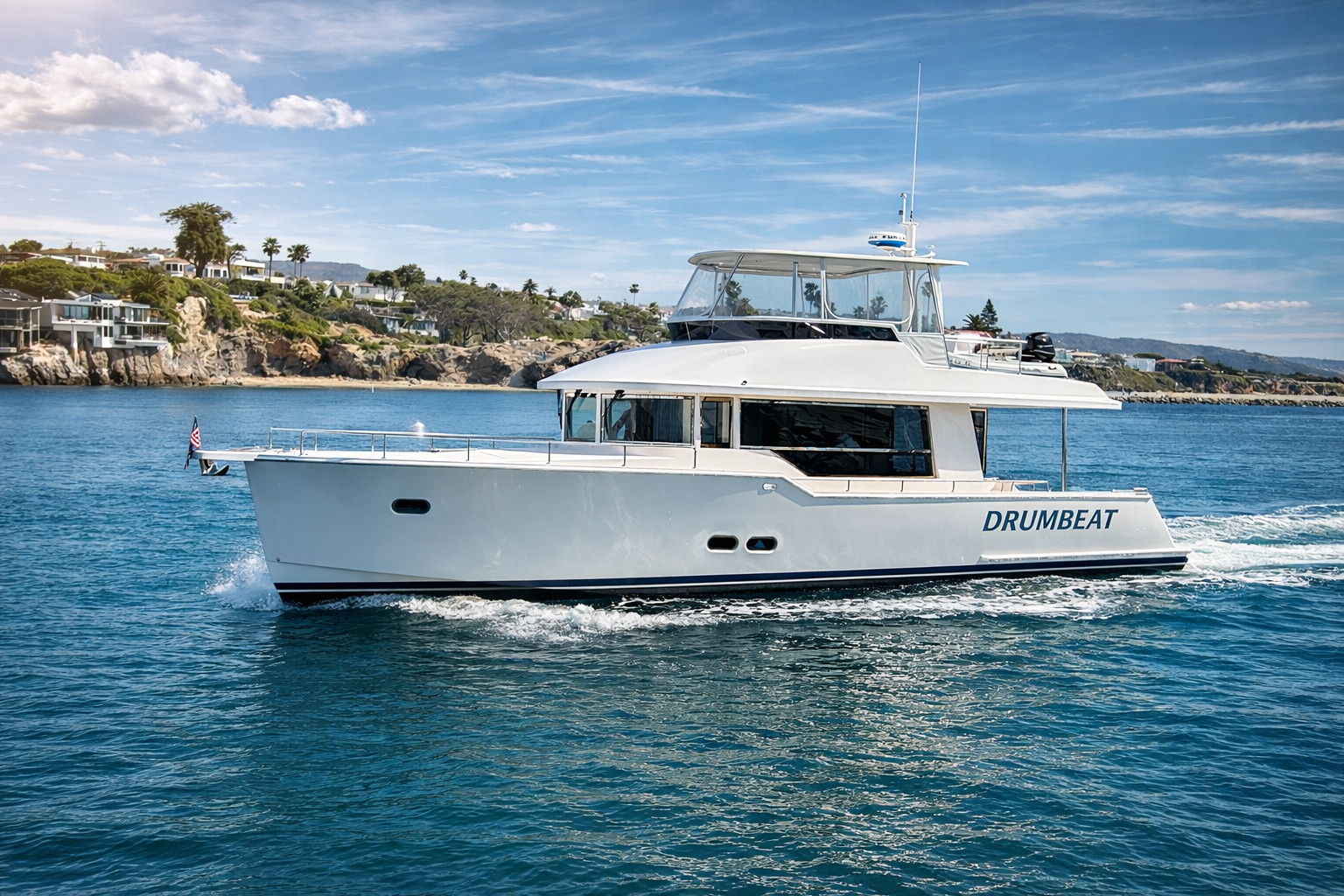

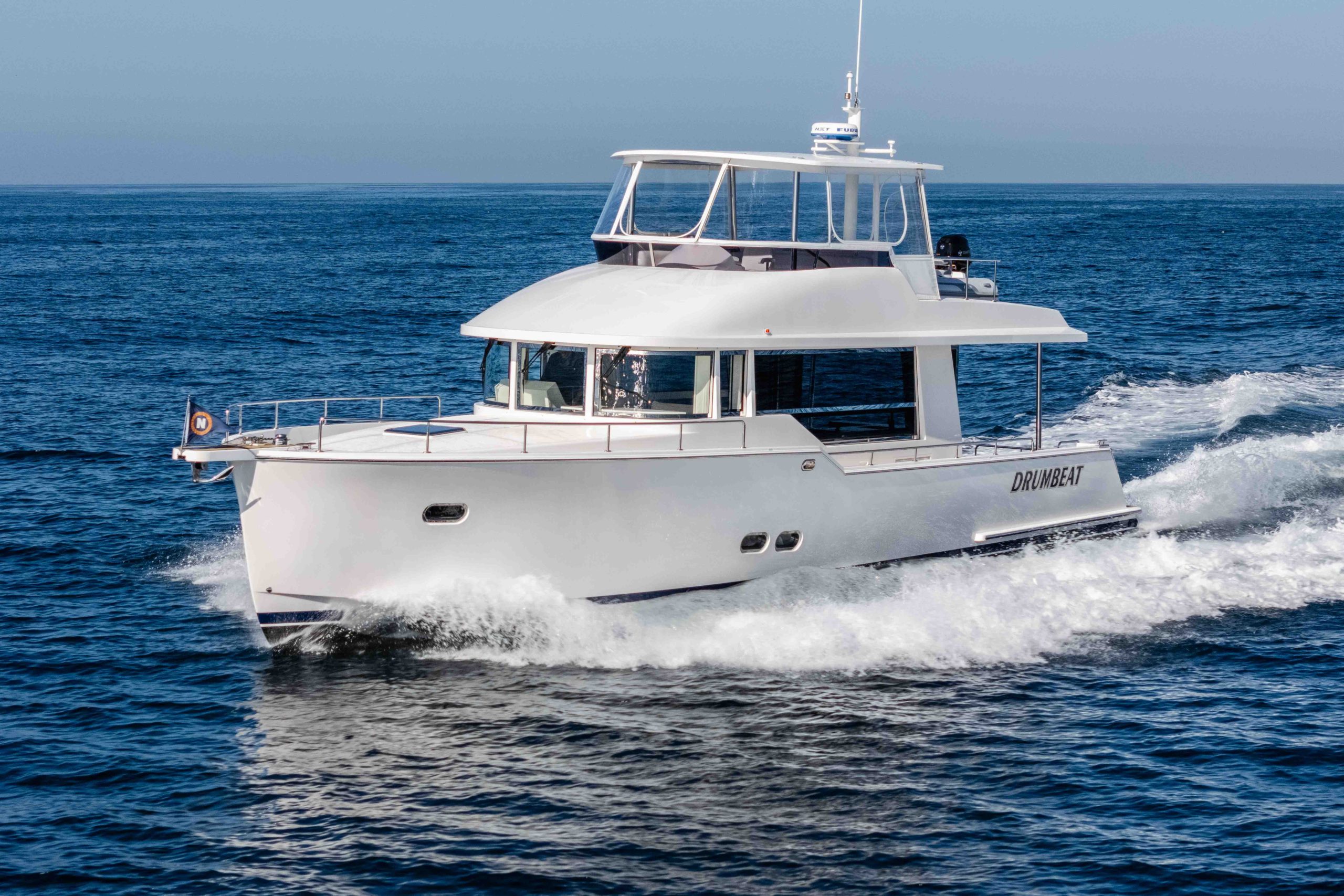

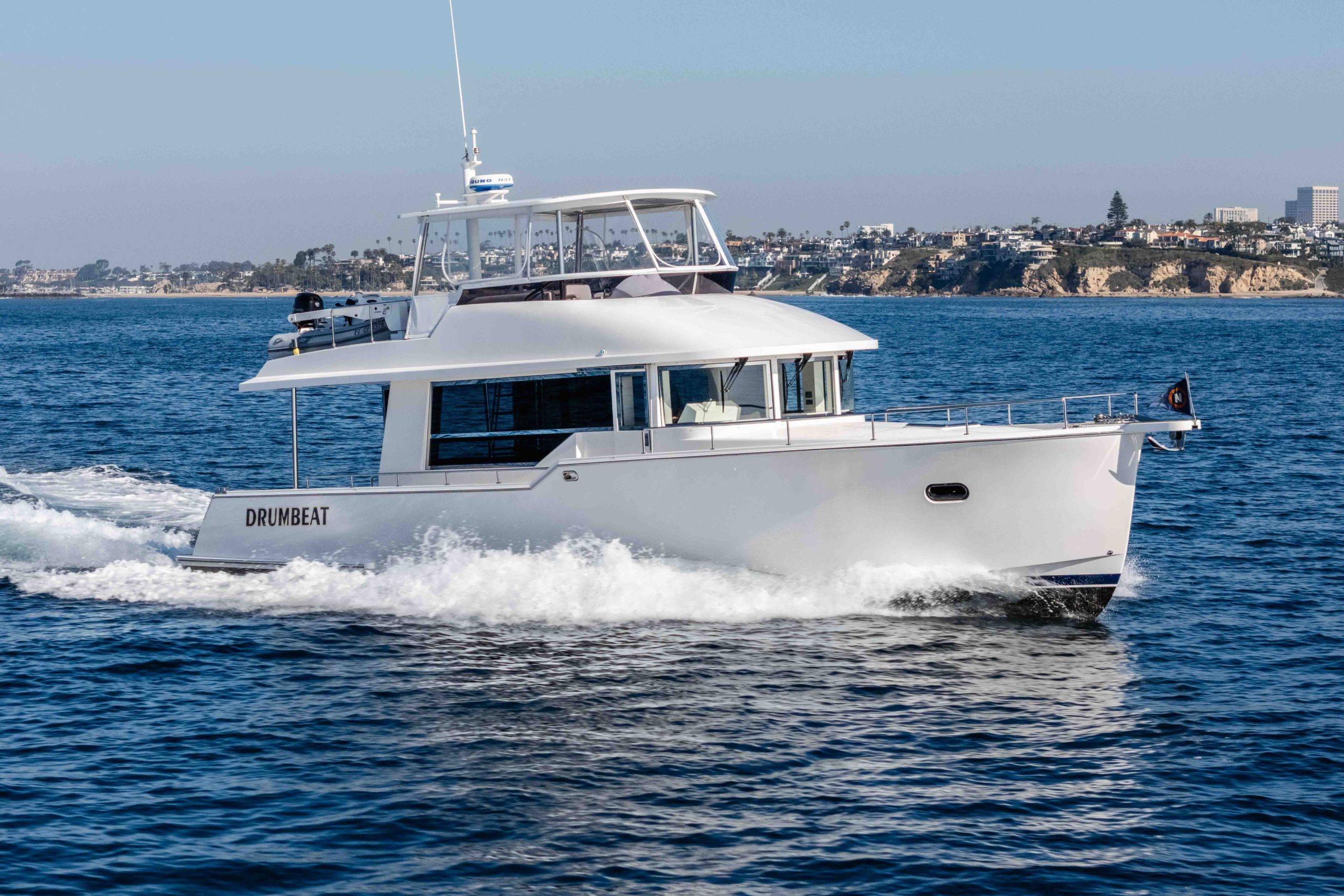

2021 50′ Outback

*PRELIMINARY SPECS*     Performance:

• 15.5 knots • 20 gph • 390 miles
• 10 knots • 650 miles
• 8.2 knots • 4.1 gph • 1,000 miles

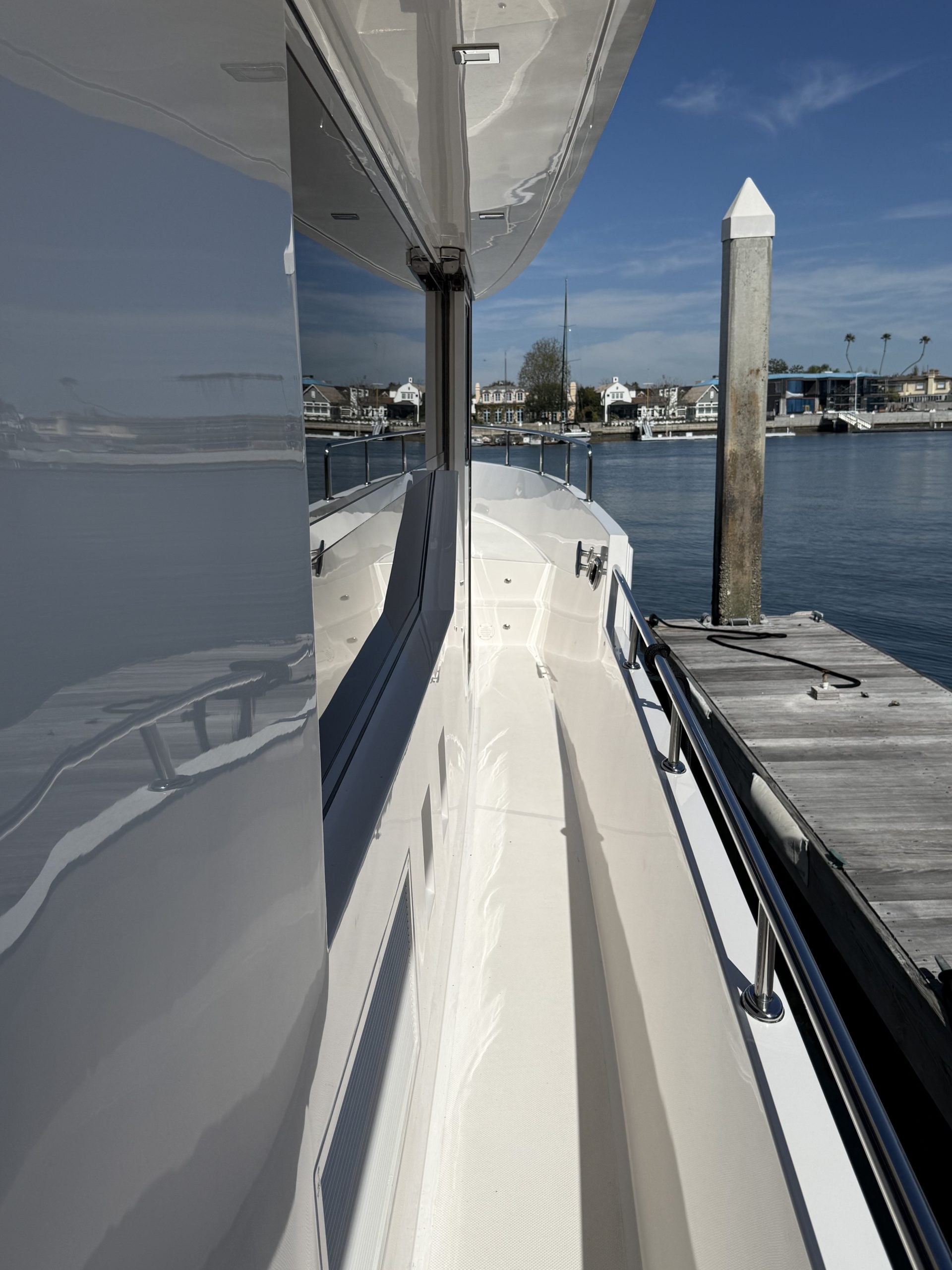

3'2" draft opens up the Bahamas, ICW, Great Loop, and shallow anchorages most 50‑footers can’t reach. Signature Outback Space:  Infinity Deck, huge aft deck, walk‑around decks, and a custom hardtop create unmatched outdoor living. Perfect for toys, swimming, lounging, and easy water access. Lifestyle:  A true couples boat that can also host twenty without feeling crowded. Romantic for two, a floating beach house for the whole family. Cruising Gear:  Watermaker • Inverter • Air conditioning • Thrusters • Custom hardtop • Direct‑drive shafts • Volvo D4 270s This Outback 50 is efficient, low‑maintenance, and designed around how people actually use their boats. LOA: 56'3" Beam: 15'6" Min Draft: 3'2" Displacement: 42000 Two Stateroom / Single Head Engines: Twin Volvo D4iG's 270HP, 230 hours Cruising Speed: 15.5 knots Max Speed: 19.5 knots Fuel: 550 gal Water: 150 gal Holding: 80 gal HULL, SUPERSTRUCTURE AND MAIN DECK CONSTRUCTION:

• Hull topsides and superstructure in general are foam cored FRP composite, with outer layers utilizing vinylester resins and E-glass reinforcements throughout the structure.
• Hull is solid FRP laminate below the waterline and form cored FRP above.
• All molded FRP parts are finished with high gloss Cook 941 gelcoat
• High density foam or solid laminates are used in areas of concentrated loads from hardware mounting.
• Molded propeller tunnels are recessed into hull reducing draft and shaft angle.
• Main deck is fully cored with flat & cambered sections with transverse & longitudinal support of girders & “hat section” stiffeners.
• SS rubrail 1” extends around perimeter of the yacht at the sheer an includes transom
• Outback white hull color
• Black Boot stripe detail
• Antifouling bottom paint (Dec 2025)

PROPULSION:

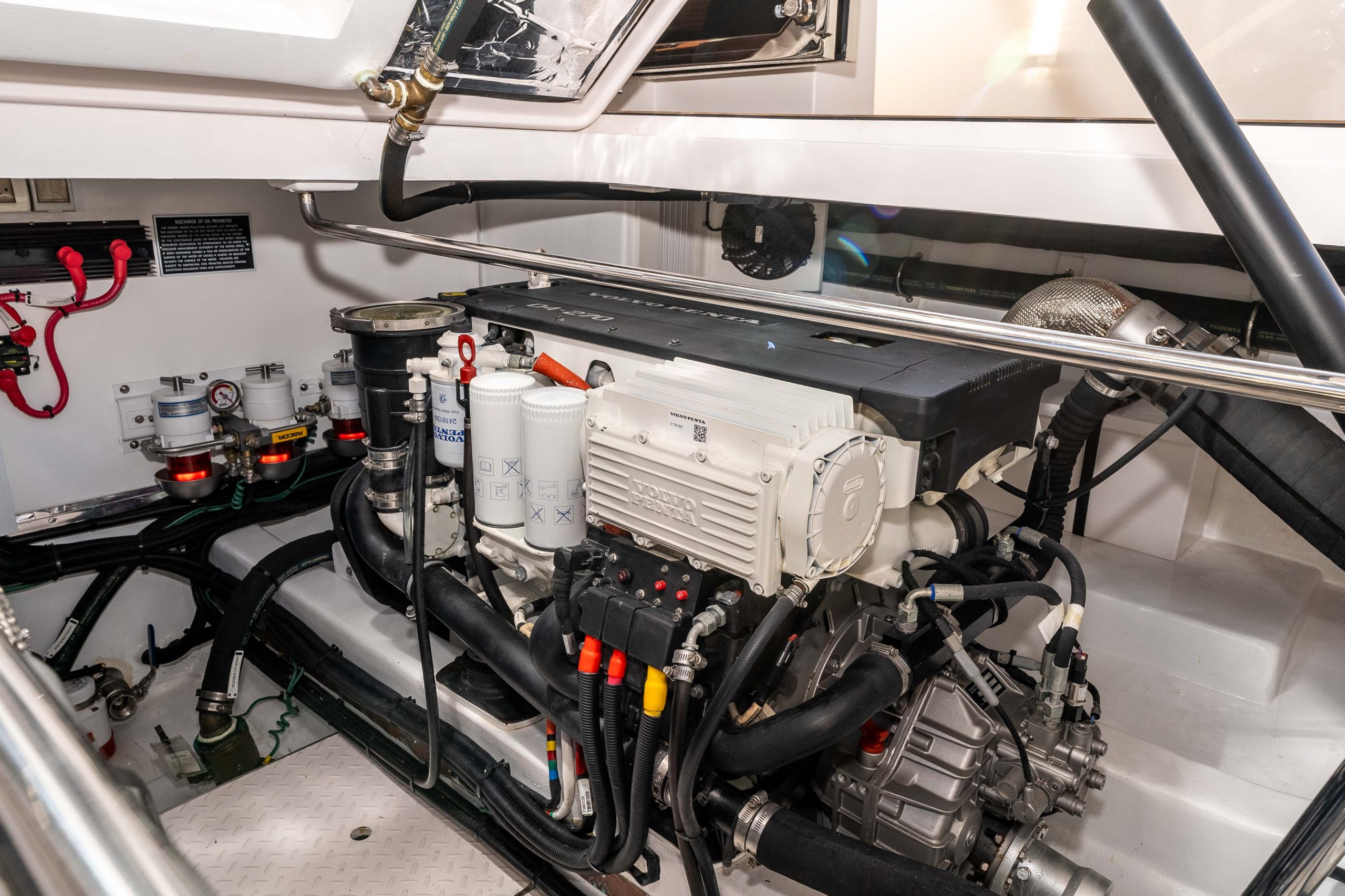

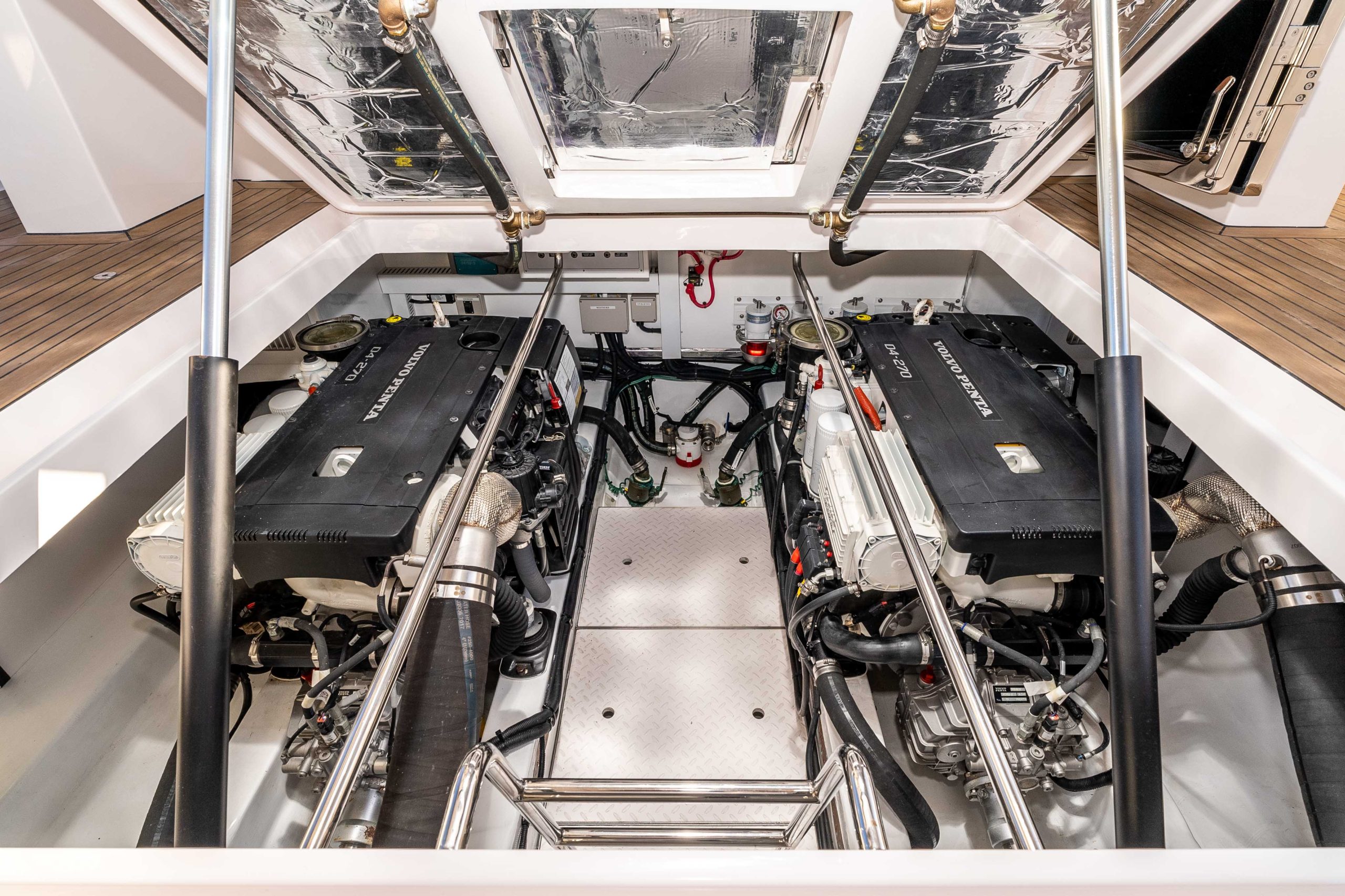

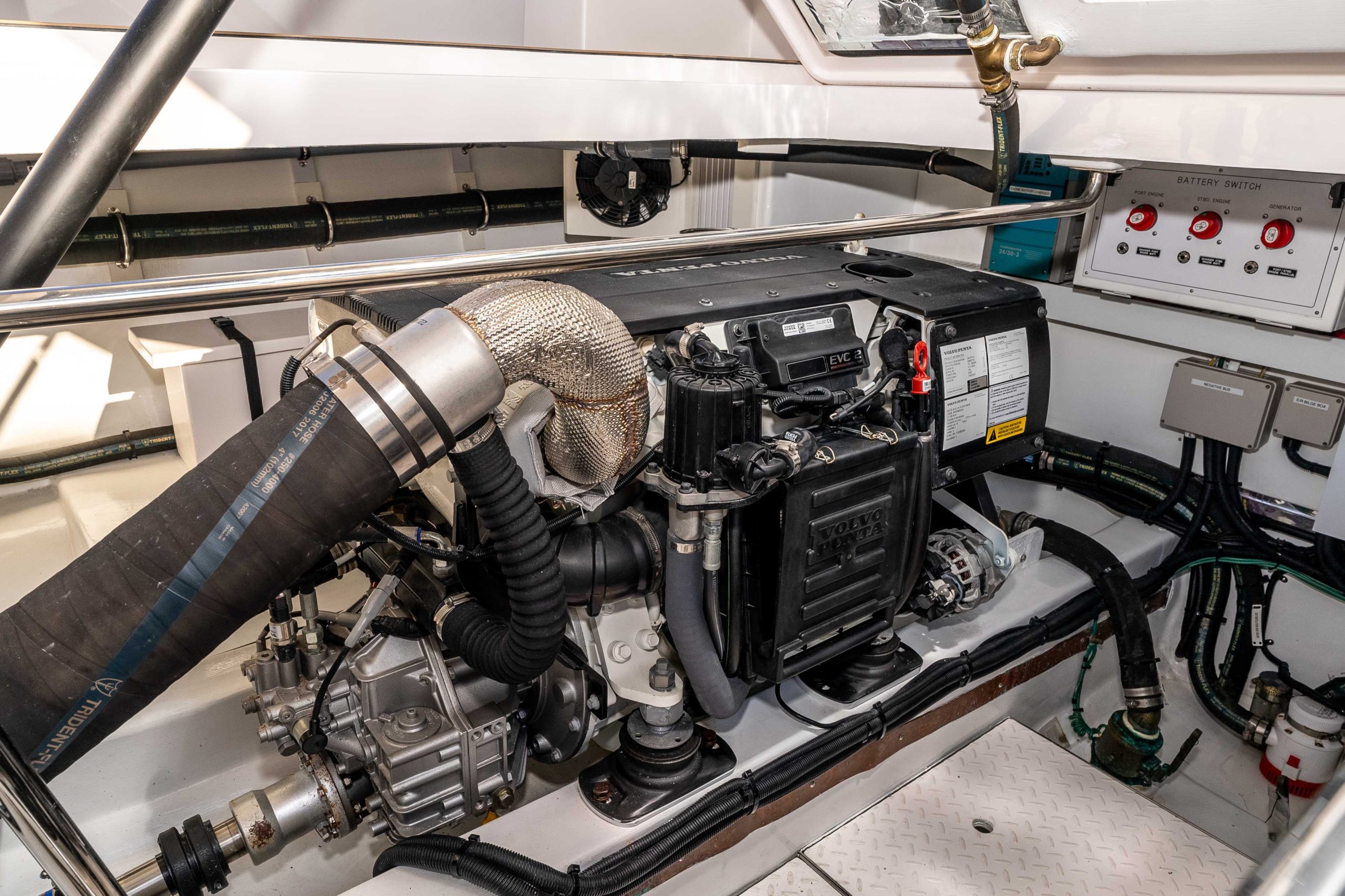

• Twin Volvo Penta D4iG 270 HP; 4 cylinder, common rail, electronic shift, Tier III emission certified. 230 hours
• SIDEPOWER SEP130 24VDC bow and stern thrusters with proportional speed control
• Integrated fresh water heat exchanger cooling system.
• 24v-80Amp alternator each engine.
• 4 blade bronze propellers
• Aquamet #19 propeller shafts
• Tides Marine dripless shaft seals
• Tides Marine dripless rudder seals
• Groco raw water intake strainers & thru hulls
• Engine room blower & vent ducts.
• Engine room floor with FRP non-skid sole
• Gloss white engine room.
• Fully insulated sound damping material
• Anti-vibration mounts on engine stringers
• Teleflex BA-200 hydraulic steering system (2) station

PLUMBING AND PIPING SYSTEMS:

• Installation is neat and accessible and clearly labeled
• (1) 550 gallon aluminum fuel tank forward of E/R bulkhead
• (2) 2” H2O fill lines.  One port and one starboard
• Bluewater 600 GPD H2O Maker
• Site gage on fuel tank
• (2) Racor fuel filters
• (4) Seaflo 24V bilge pumps with 3-way switches and Ultra float switches
• Beckson manual bilge pump
• (2) SS 75 gallon water tanks located at sole (total 150)
• Crossover with shutoff valves for filling fuel tanks (port or stbd)
• H2O tank gages at lower helm
• Jabsco Par Max 4” 24V fresh water pump
• (2) Jabsco accumulator tanks
• Seaward F1100 galvanized steel 120V water heater
• Trionic 14.5 gal 24V sump tank for head sinks & showers
• Sealand T series 24V discharge pump for holding tank
• Sealand Tank Watch 4 depth indicator
• Jabsco seawater deck wash pump
• (3) Freshwater hose coils at bow, stern and flybridge
• Whale Twist Deck shower at transom

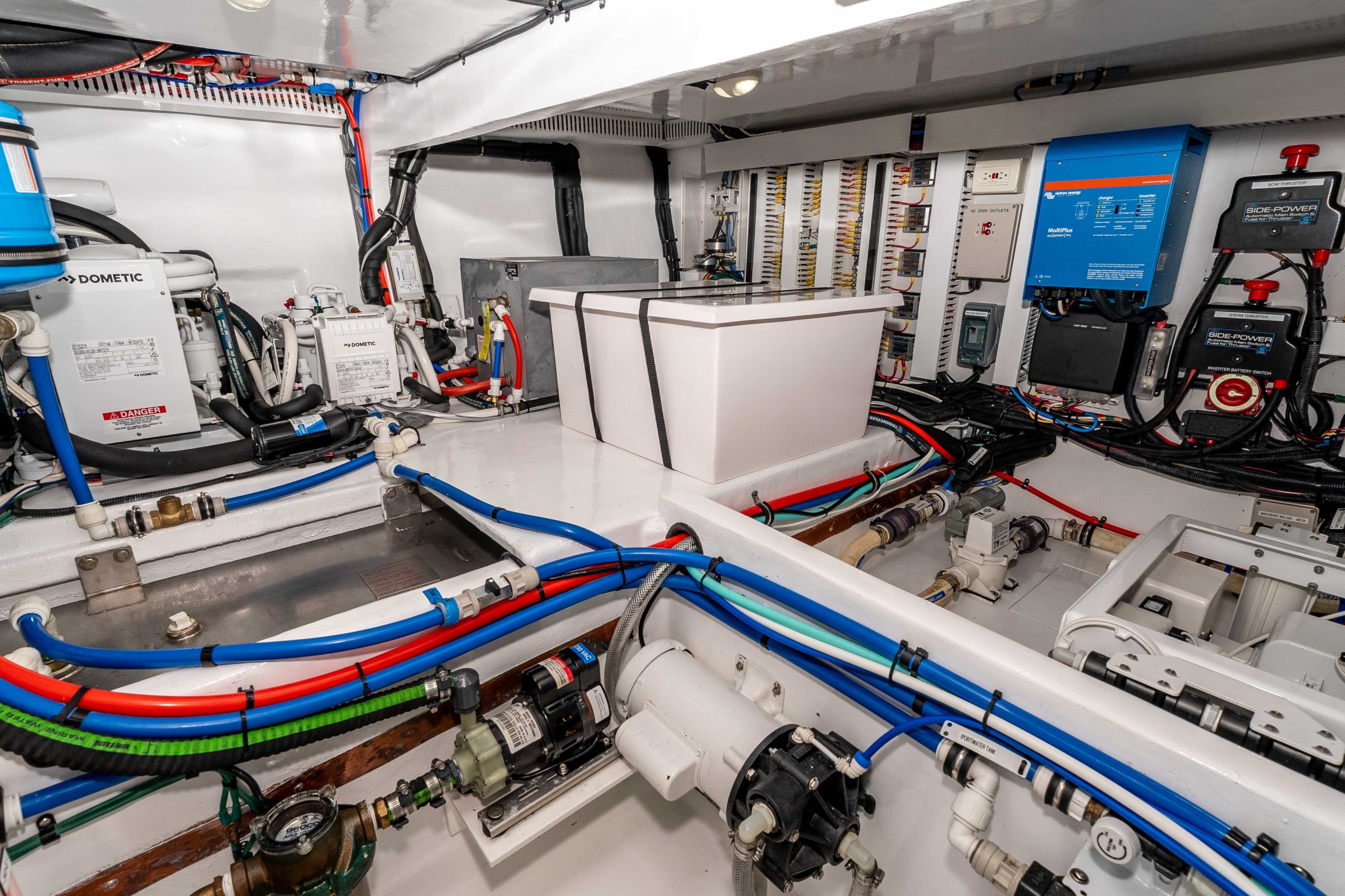

ELECTRICAL:

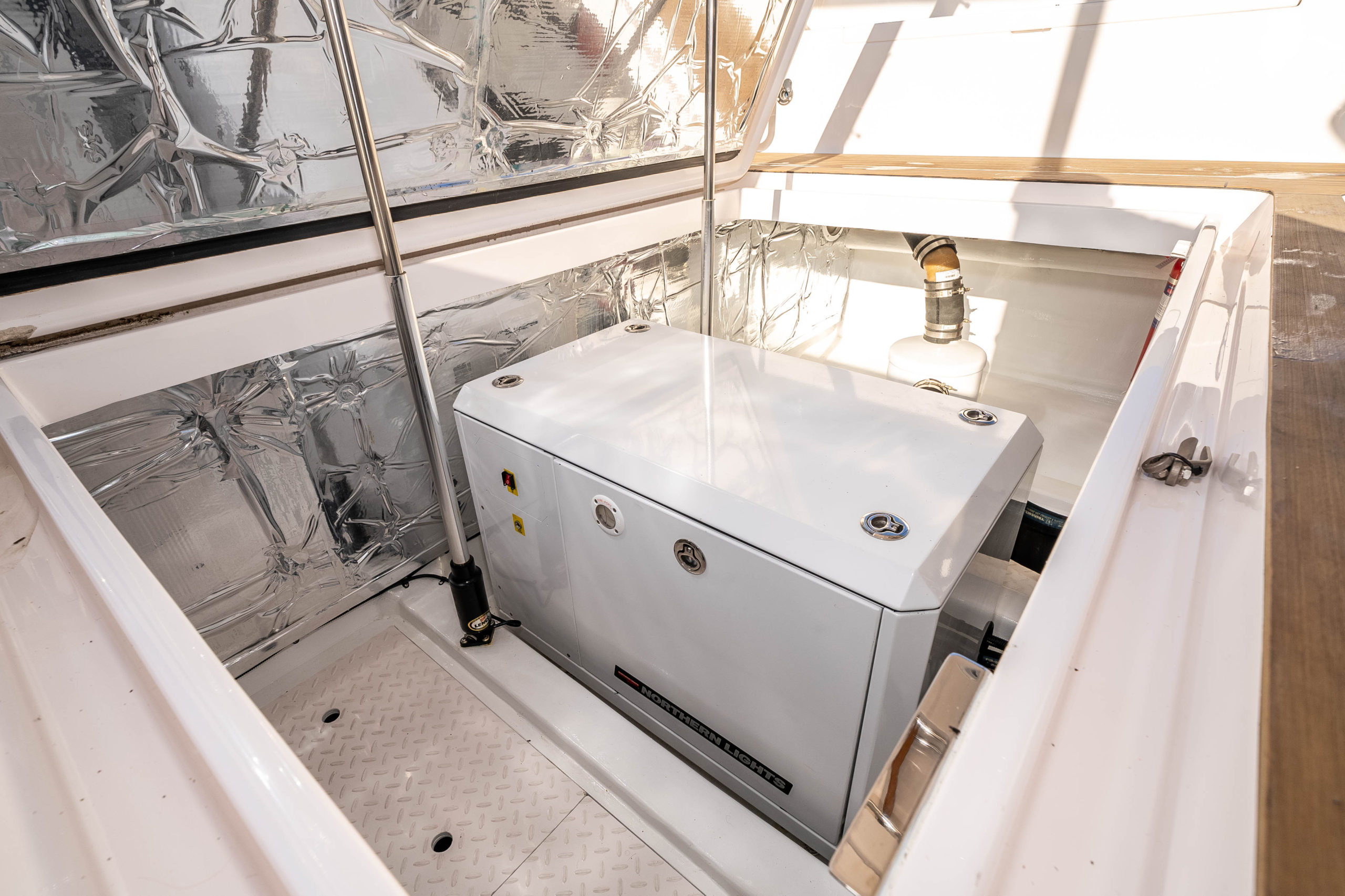

• Northern Lights 12kw generator with sound shield, 215 hours
• Remote start/stop panel for generator at lower helm
• Gas/water separator muffler for quiet generator operation
• Victron Multi Plus interter/charger
• Dometic Marine Air reverse cycle air conditioning and heating system. (2) remote mount compressors with 3 air handlers
• AC/DC main control panel located near lower helm
• (4) Mastervolt AGM batteries for house system
• (2) Mastervolt AGM for engine start
• Mastervolt converter 24/12-24
• (2)Marinco shorepower outlets 50 amp/110v/220v
• Promariner galvanic isolator and bonding system
• Mastervolt “Battery Mate” isolator
• Mastervolt Chargemaster Plus 24V/60 for house service
• Mastervolt Chargemaster 12V/35 for engine batteries
• Kraus & Naimer transfer switch for forward or aft shorepower
• 110 V outlets throughout accommodations, flybridge, infinity deck and engine room GFCI protected, and waterproof at exterior outlets.
• 24 Volt house system
• LED lighting throughout with dimmers
• Effective lighting in all machinery and storage spaces
• Main deck safety lighting
• (24) Exterior overhead Infinity deck lighting
• (5) Hella LED navigation lights - US compliant

DECK FITTINGS AND EQUIPMENT:

• Muir Windlass VRC1250 24v with 2 station controls and SS chain stopper
• 50’ ACCO BBB galvanized chain with 300’ 5/8” nylon anchor line
• Bruce style 66 lb. anchor
• Molded FRP pulpit with SS anchor channel and roller.

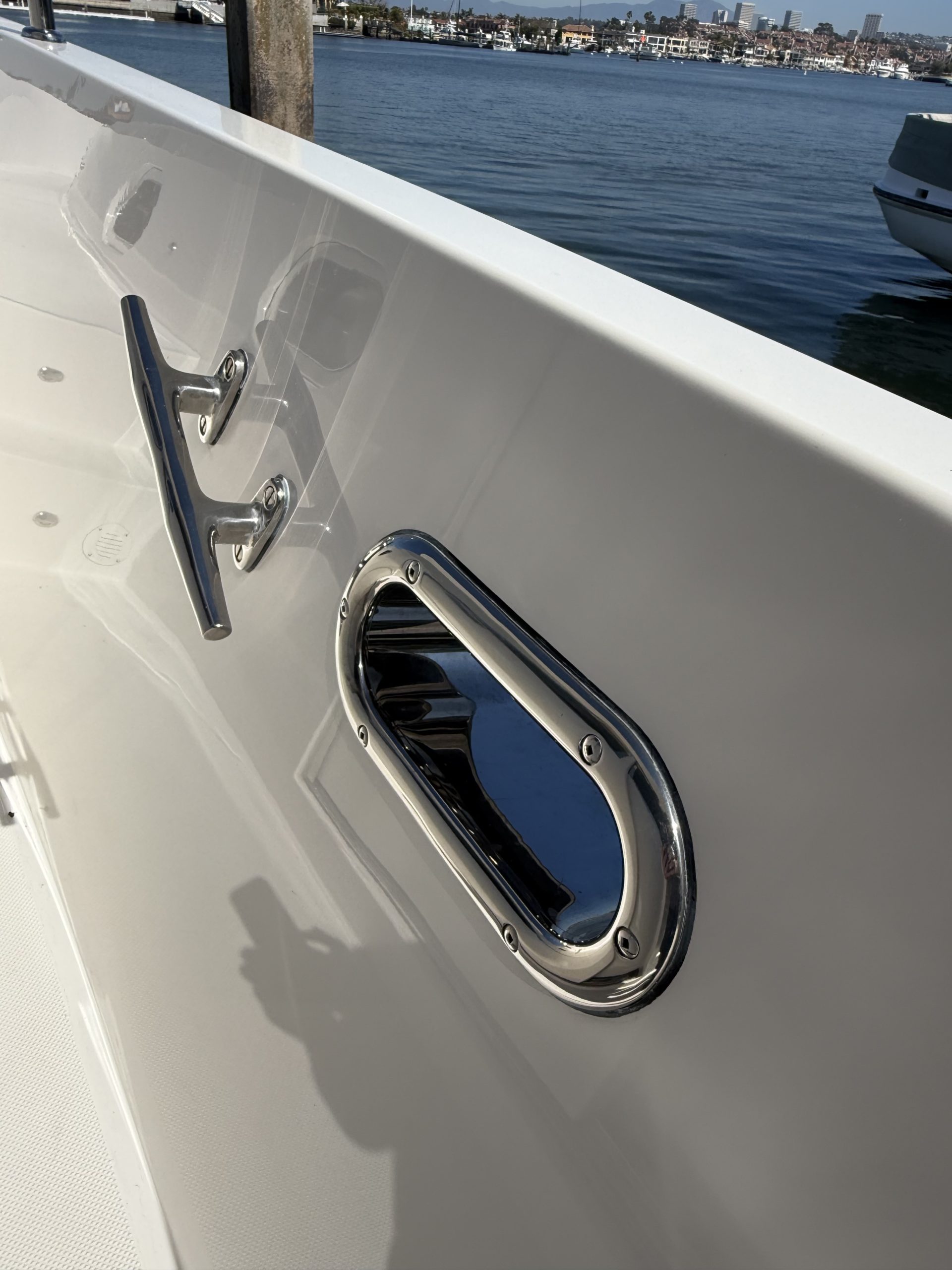

• (4)12” SS mooring cleats
• (2) 15” SS mooring cleats at transom
• (1) 8” SS mooring cleat on platform for snubber line
• (2) SS Hawse holes located midships
• (2) SS chocks in way of forward mooring cleats
• Aluminum mast (white powder coat) on flybridge. Hinged to lower bridge clearance
• (3) Exalto wiper/washer system with speed control

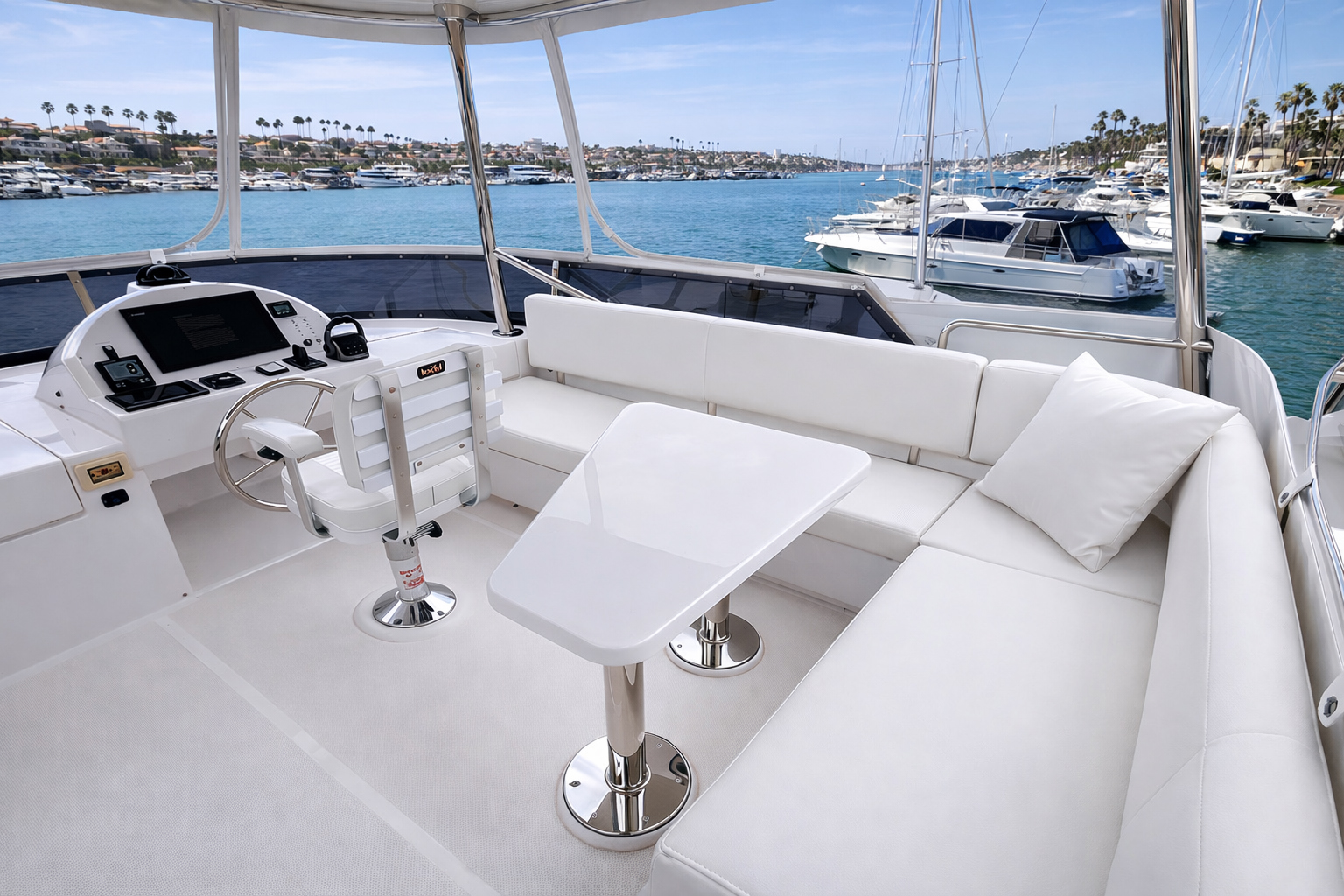

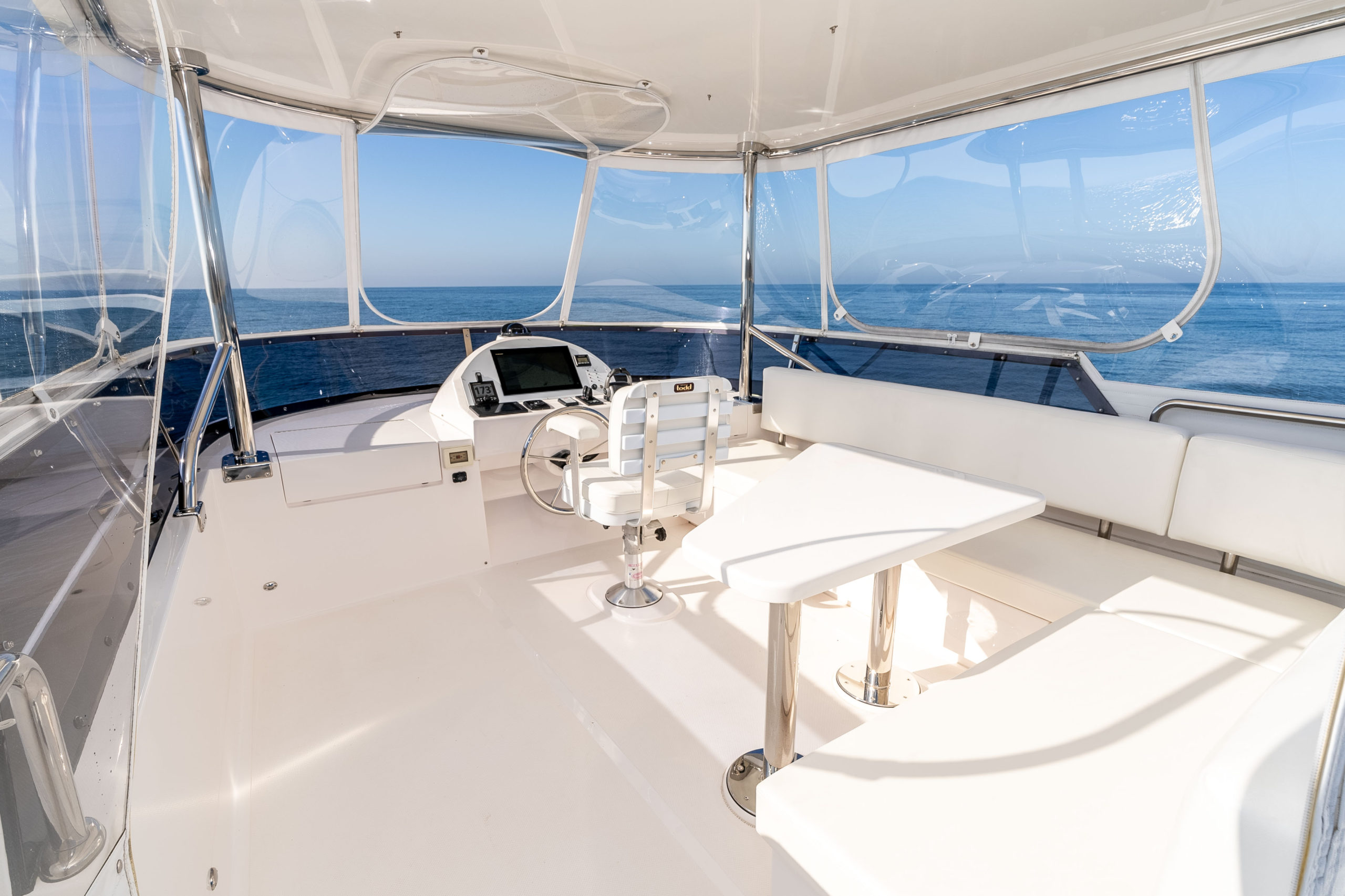

FLYBRIDGE:

• Custom Hardtop with full Lexan enclosure

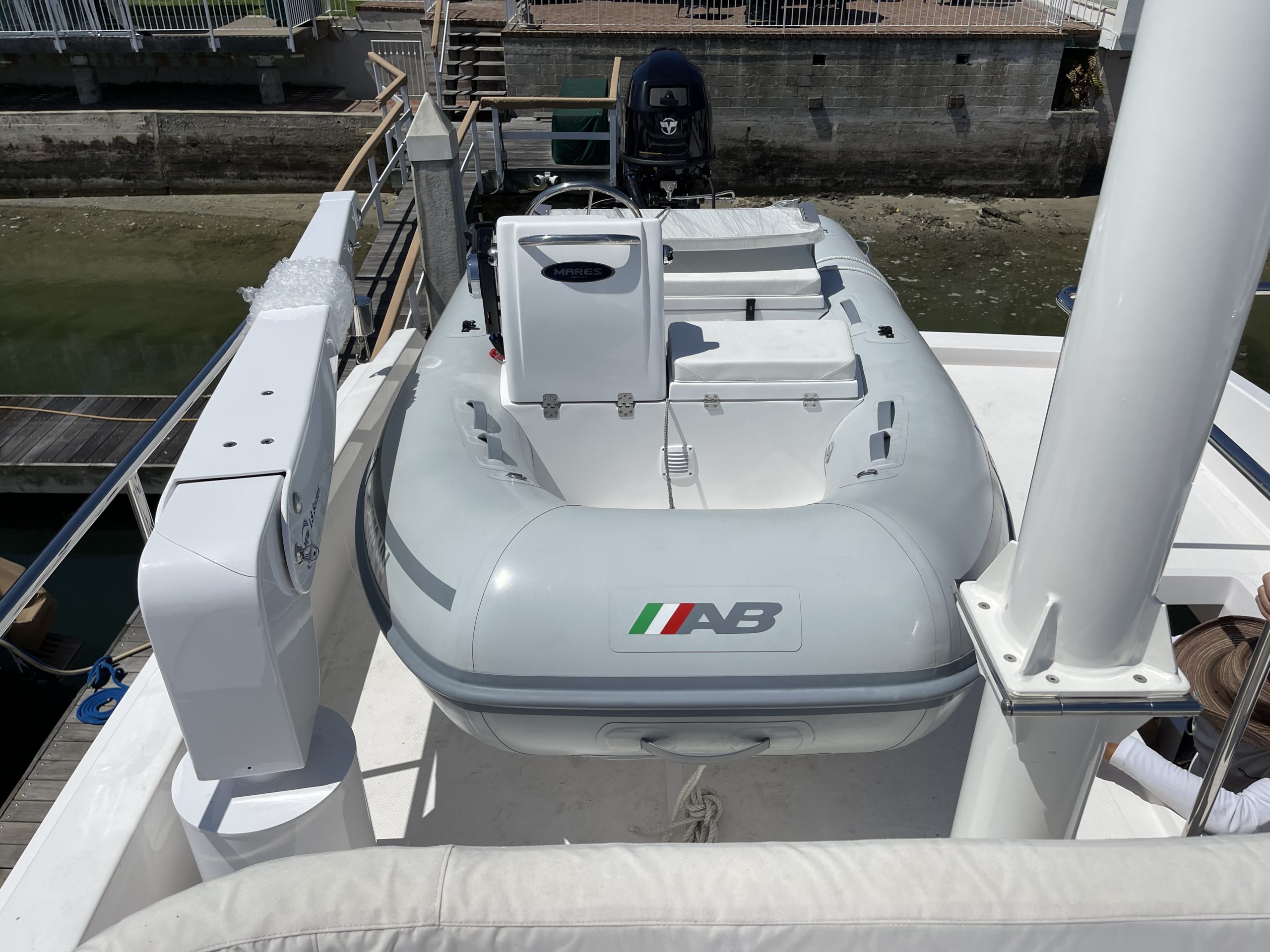

• AB 10' Tender
• YRM 600 lb. tender
• L – shaped lounge, upholstered
• Molded FRP helm console
• Todd Marine helm chair with slider assembly
• (2) 3” SS stanchions for boat deck support
• Structural lamination for future davit
• SS 1 ¼” safety rails port and starboard
• SS 1 ¼” safety rail surrounding ladder to Infinity deck
• Tinted Plexiglass venturi screen
• FRP dining table with (2) SS posts
• Hinging Navigation mast. Powder coated aluminum

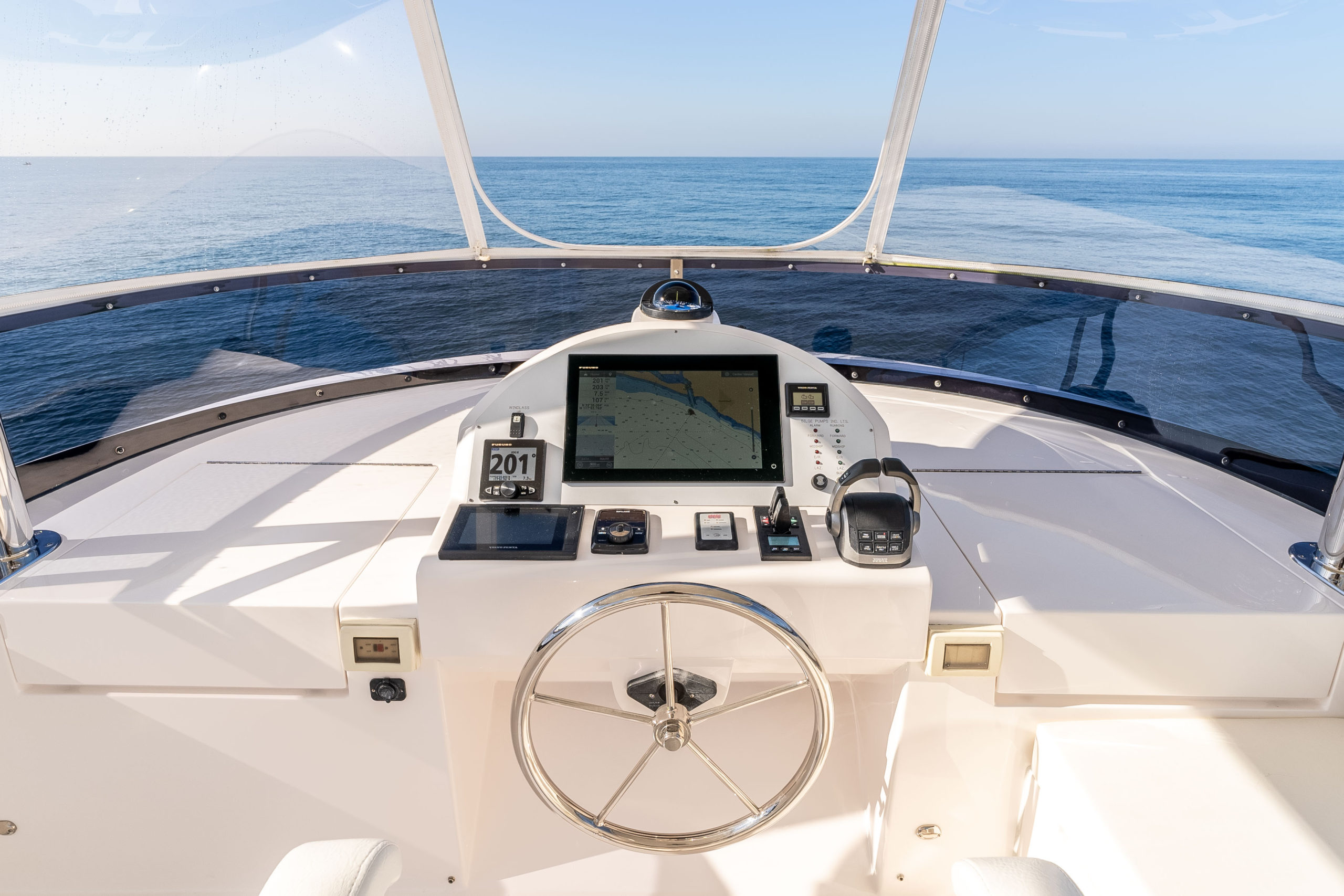

FLYBRIDGE HELM

• 15" NavNet display
• Furuno Autopilot
• Bow and Stern Thruster Conrols
• Zipwake Auto Trim control
• iCOM VHF radio
• Dual Volvo Penta engine monitoring systems
• Twin Lever Shift & Throttle Control (EVC-E)
• Ritchie SS 2000 compass
• Switch controls for horn, running lights, anchor light, engine room blowers, & bilge pumps
• Custom SS spoke steering wheel
• Port and starboard lift top gear storage
• Todd Marine white helm chair with slider assembly
• Windless up/down switch

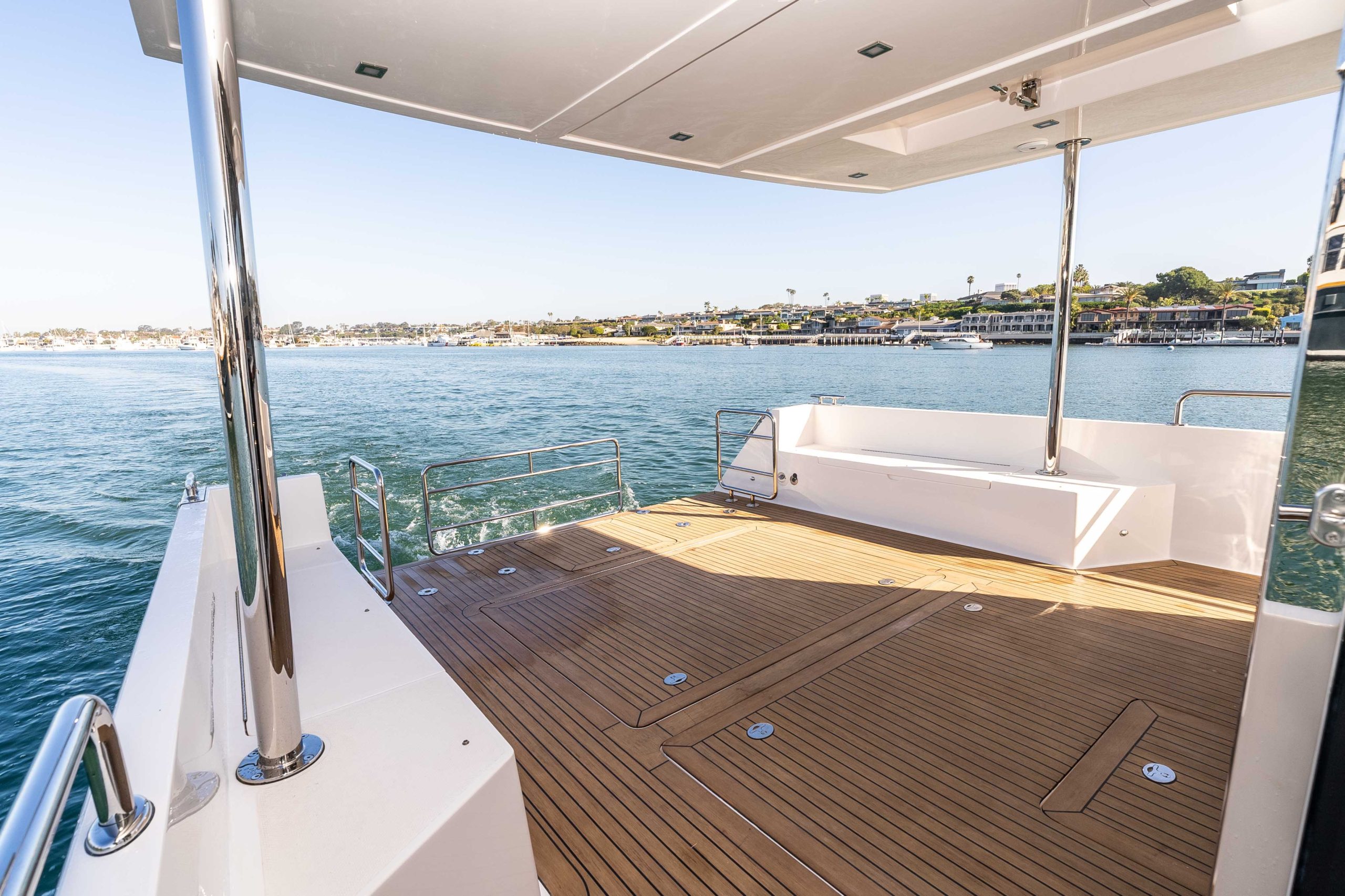

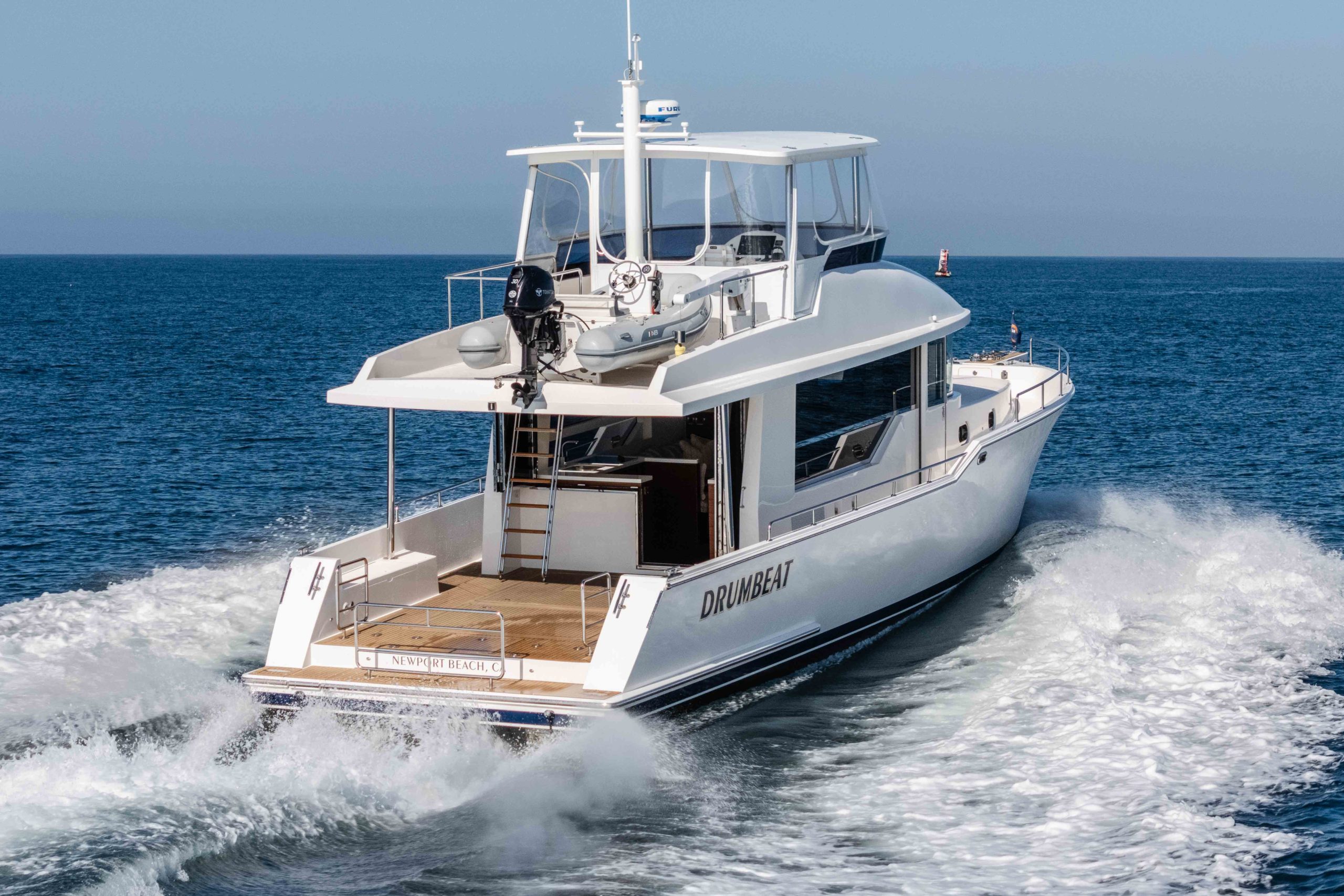

INFINITY DECK:

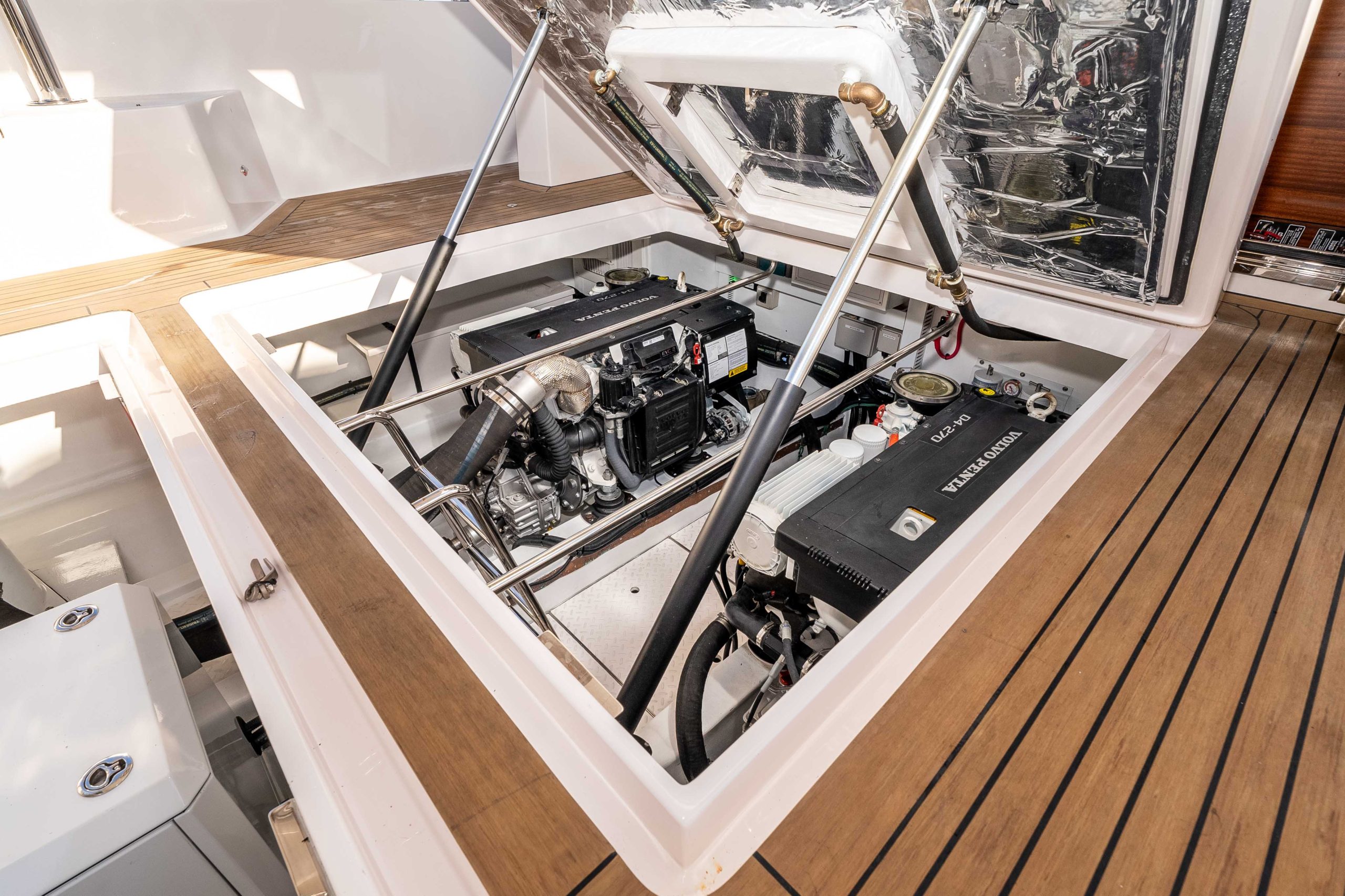

• (1) large engine room access hatch with dual ram electric hydraulic lift
• (1) Quick access engine room hatch with ladder
• (1) Large generator room access hatch with dual ram electric hydraulic lift

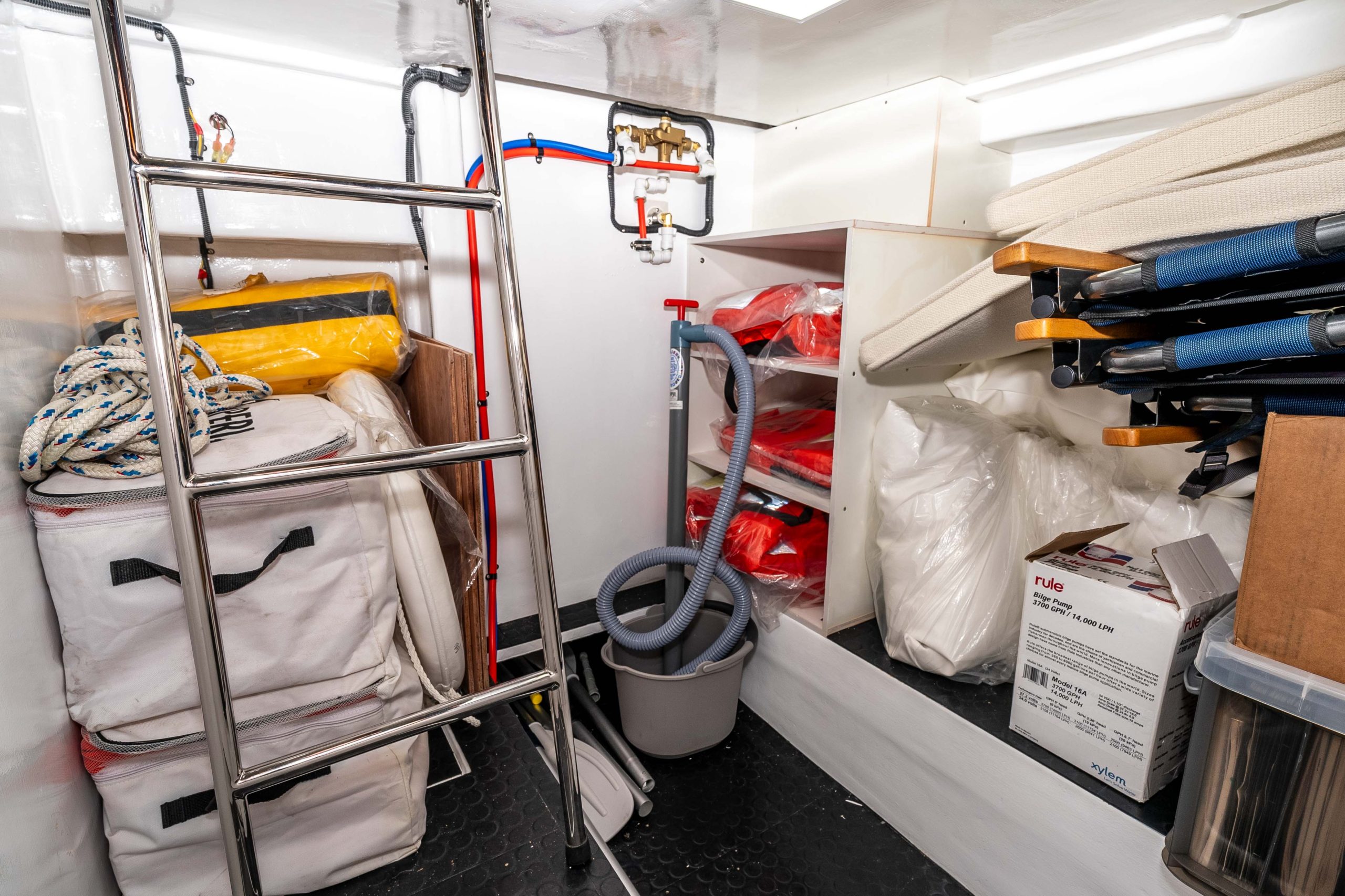

• (1) Lazarette access hatch
• Hatches drain to waterline
• Flexiteek decking for entire deck and swim platform
• SS retractable ladder to flybridge with teak stair treads
• Port and starboard FRP bench seats with lift top storage
• SS (3) piece transom railing system with multiple configurations
• SS retractable swim ladder with cover on platform
• (2) Pop up SS cleats on platform
• SS 1 ¼” safety handrail from Infinity deck to bow
• LED overhead lighting
• LED deck safety lighting

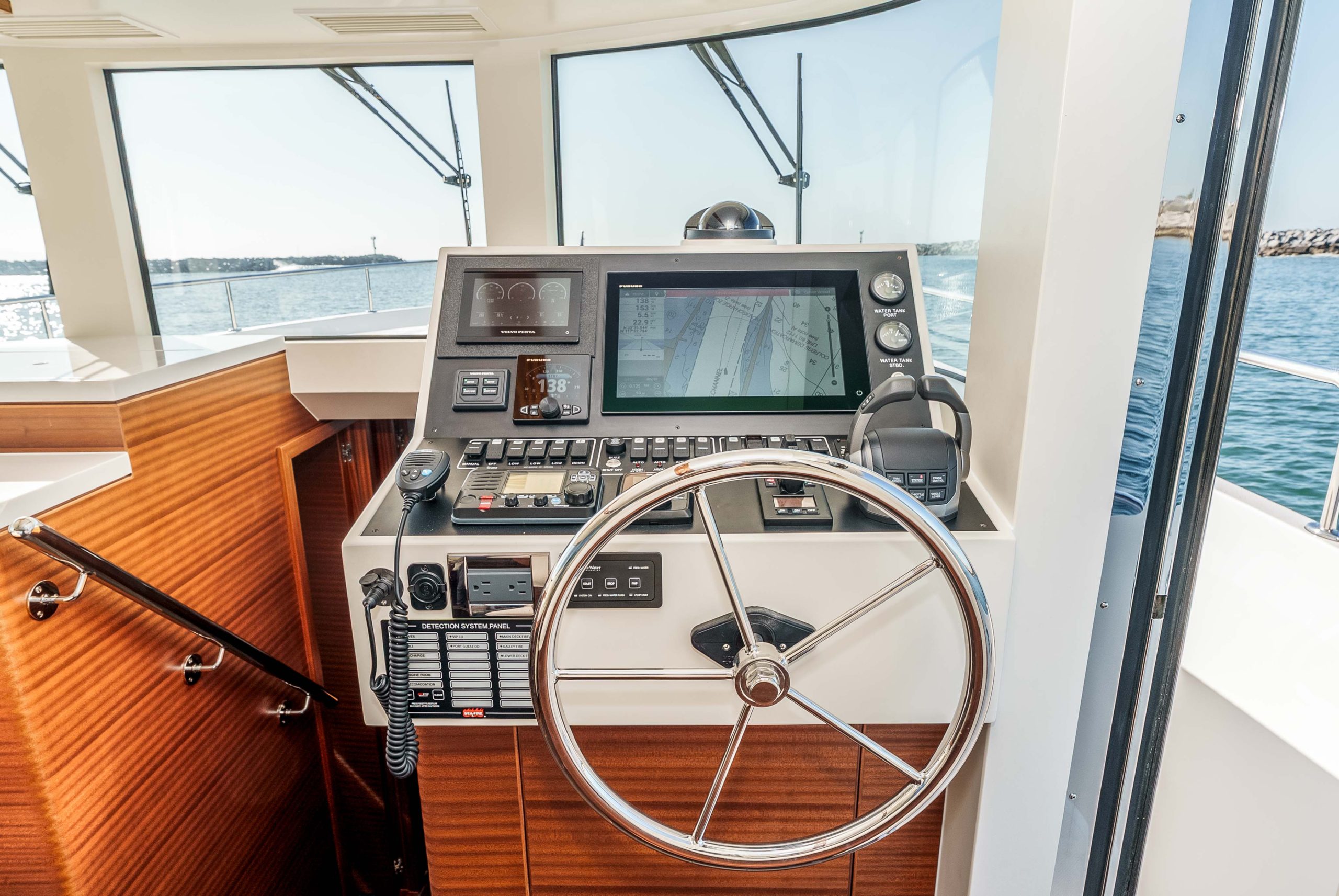

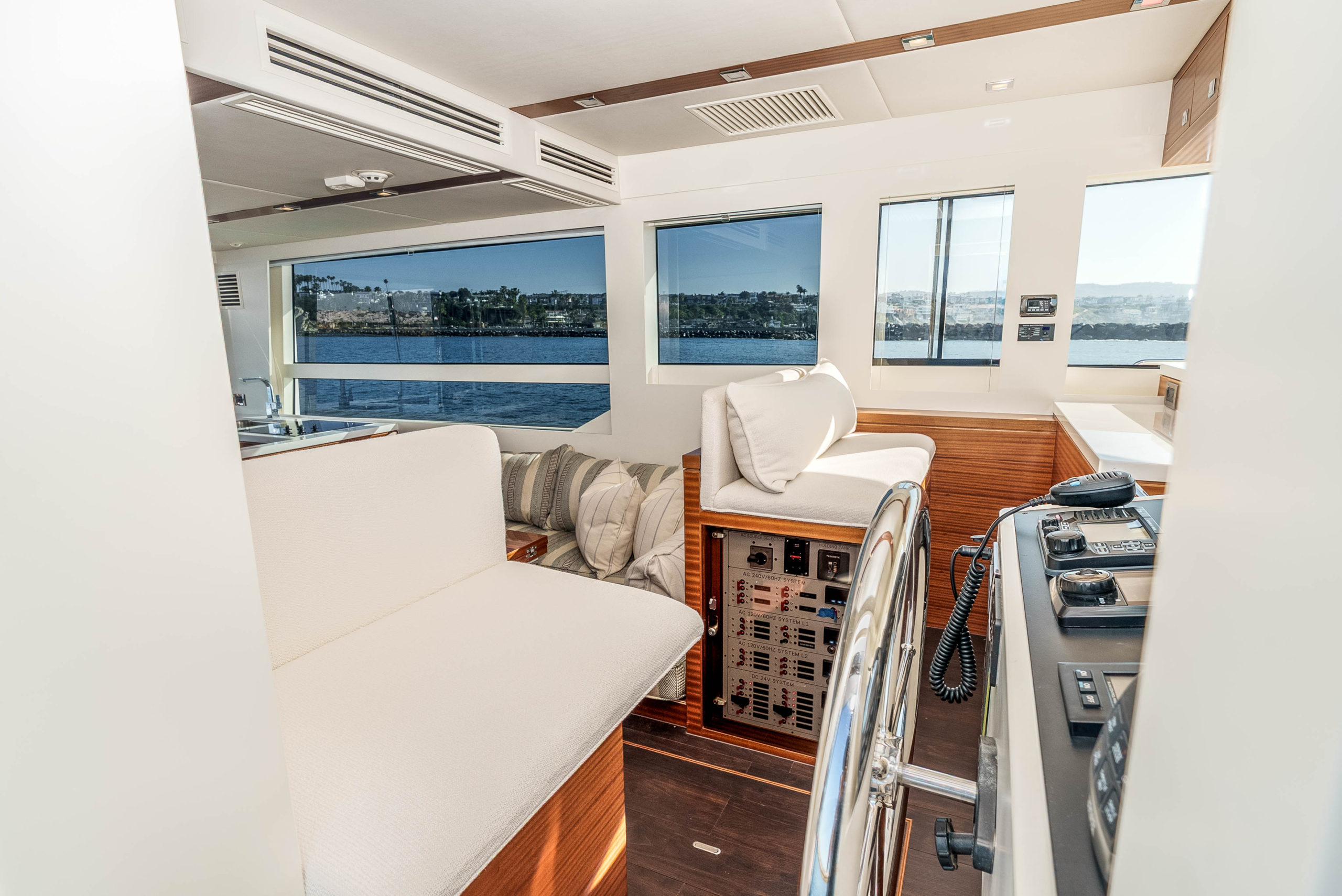

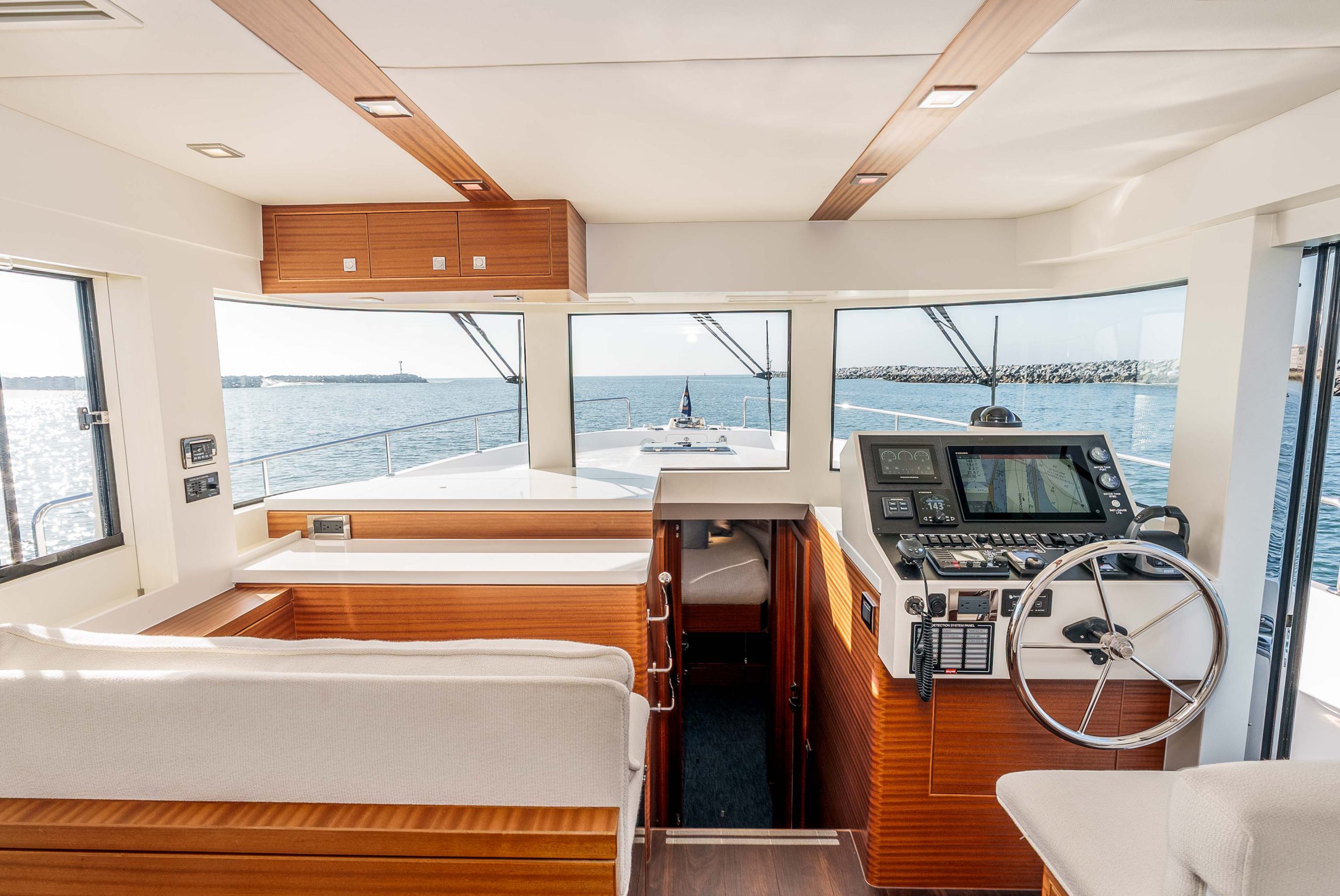

LOWER HELM + NAV GEAR + EQUIPMENT

• Zipwake trim tab control with auto pitch mode
• NavNet TZtouch 15" MDF/Fishfinder/GPS Plotter
• Furuno NavNet GPS Antenna
• Furuno 24" Solid State Dome Radar
•  Furuno 711C Autopilot
• iCOM-M506 VHF with hailer
• 8' VHF Antenna
• AIS Antenna
• Furuno Ethernet Hub for NavNet 3D
• Sliding access door to starboard side deck
• Dual Volvo Penta engine monitoring systems
• Twin Lever Shift & Throttle Control (EVC-E)
• Triple windshield wipers w/ multiple speed settings
• Windshield washers plumbed from the freshwater system
• Ritchie SS 2000 compass
• Switch controls for horn, running lights, anchor light, engine room blowers, & bilge pumps
• Custom SS spoke steering wheel
• Upholstered bench seat

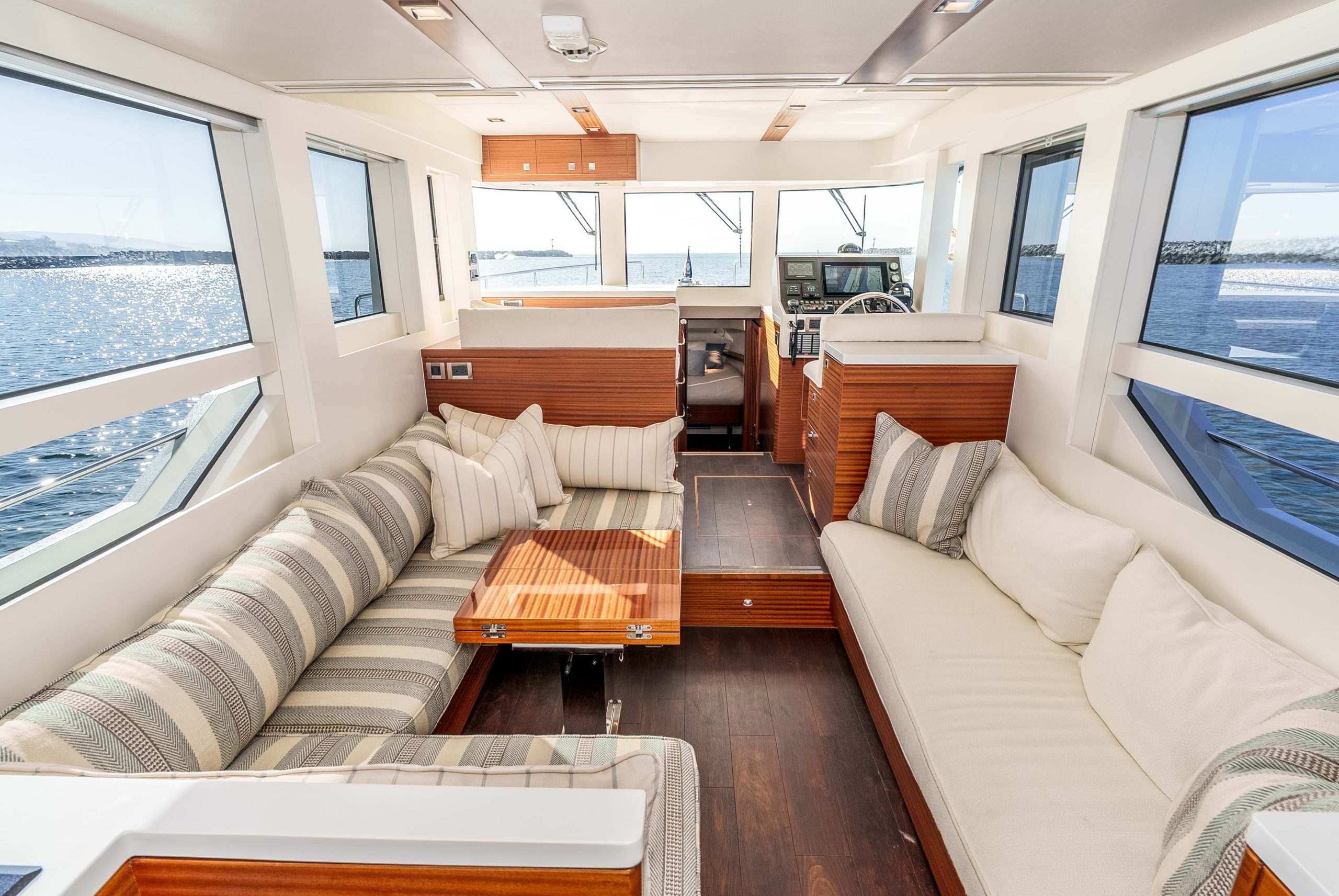

SALON:

• “L” settee with storage
• 5” foam cushions, with storage under
• Hi-low dining/cocktail table with removable leaf
• Entertainment center with 40” Samsung LED TV with lift
• Sound deadening, soft headliner panels
• Storage cabinet
• Hinged stainless steel door to cockpit
• Breaker panel
• Deep chart table forward of L-settee seat port

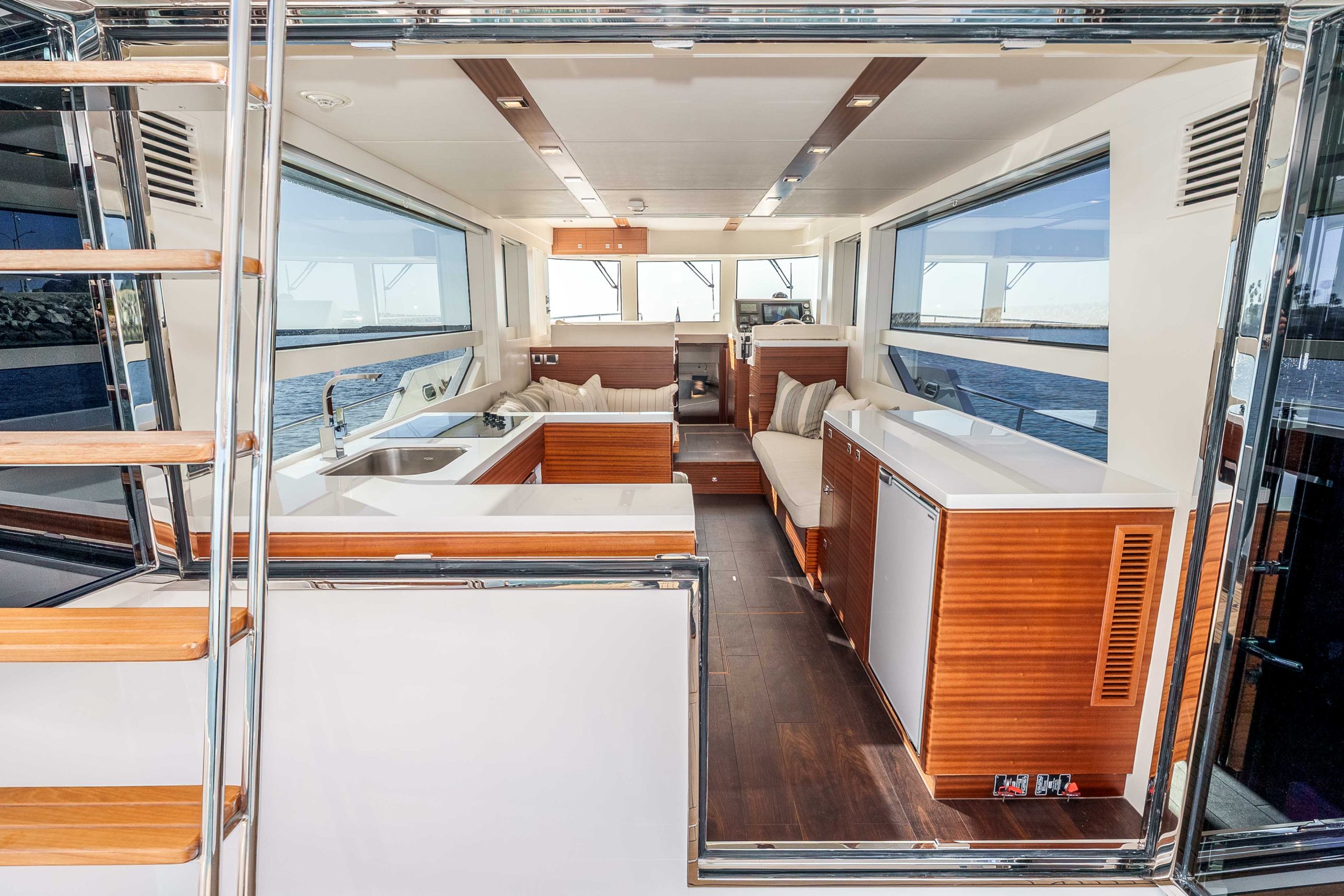

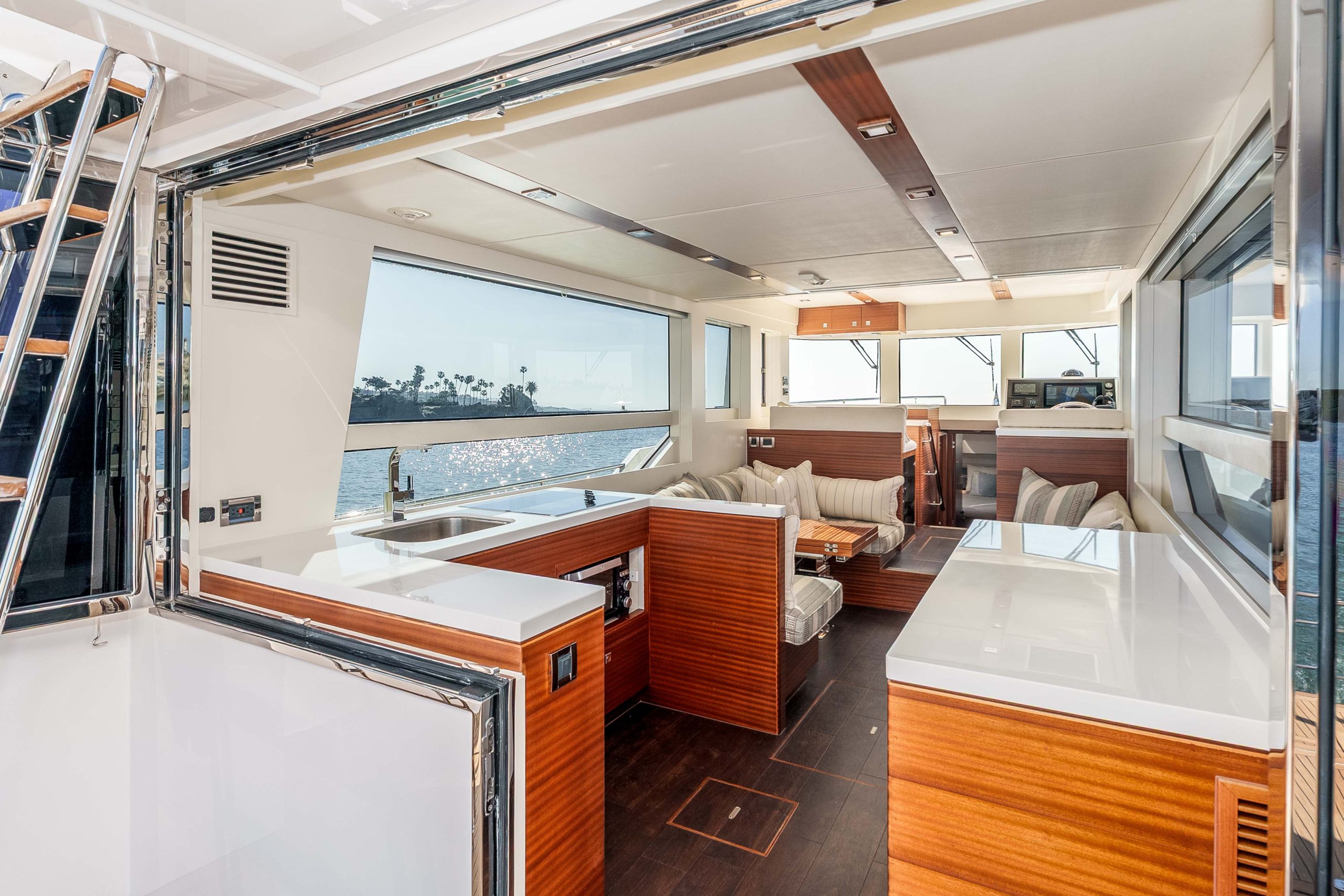

AFT GALLEY:

• Beautiful galley with amazing views.
• Solid grey engineered surface countertop.
• Stainless steel under mount sink with cover
• Vitrifrigo refrigerator
• Kenyon 3 burner cooktop
• Microwave oven with stainless steel face
• Drawers and storage lockers below the counter.
• Built-in waste basket.
• Opening window

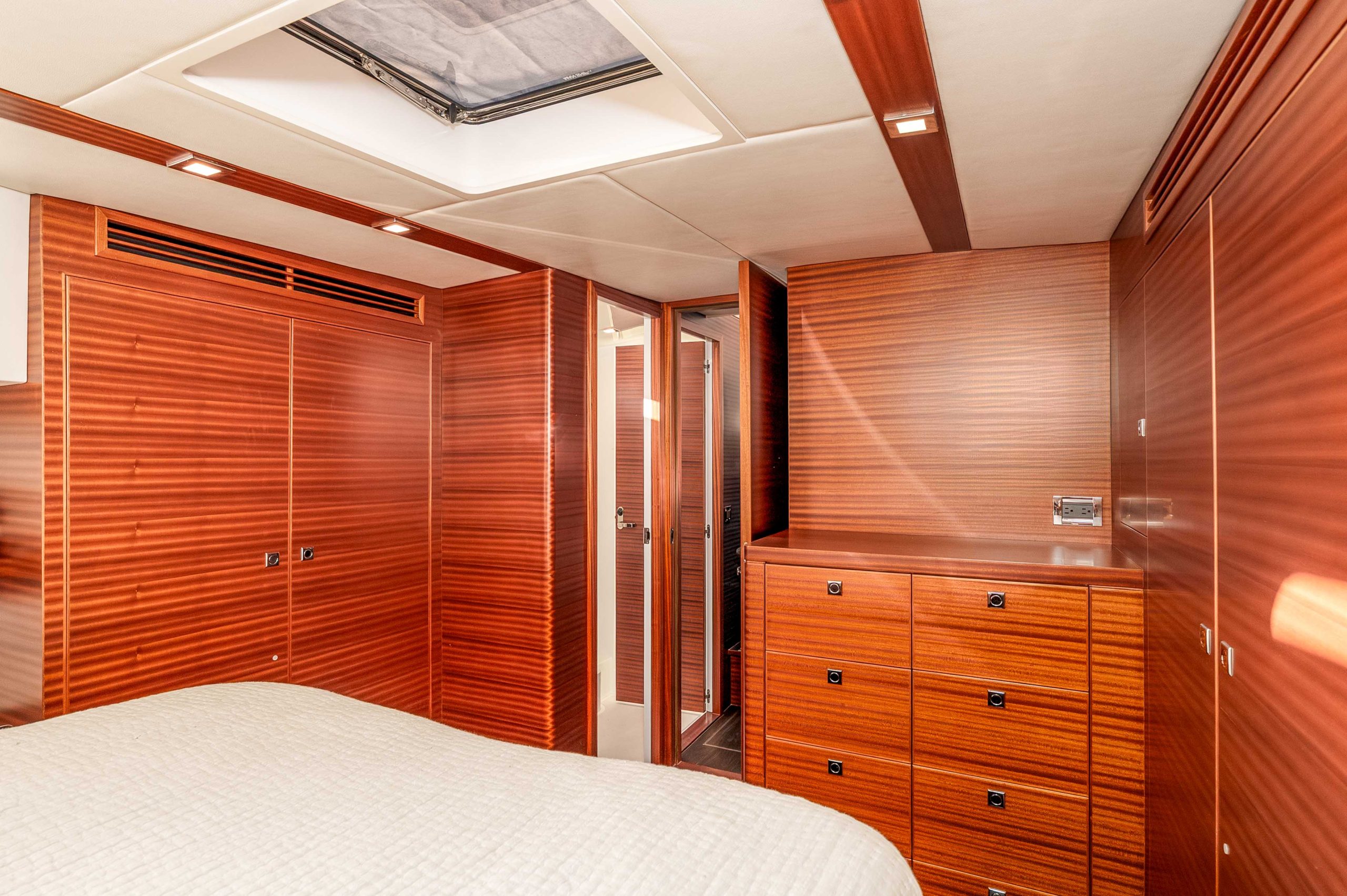

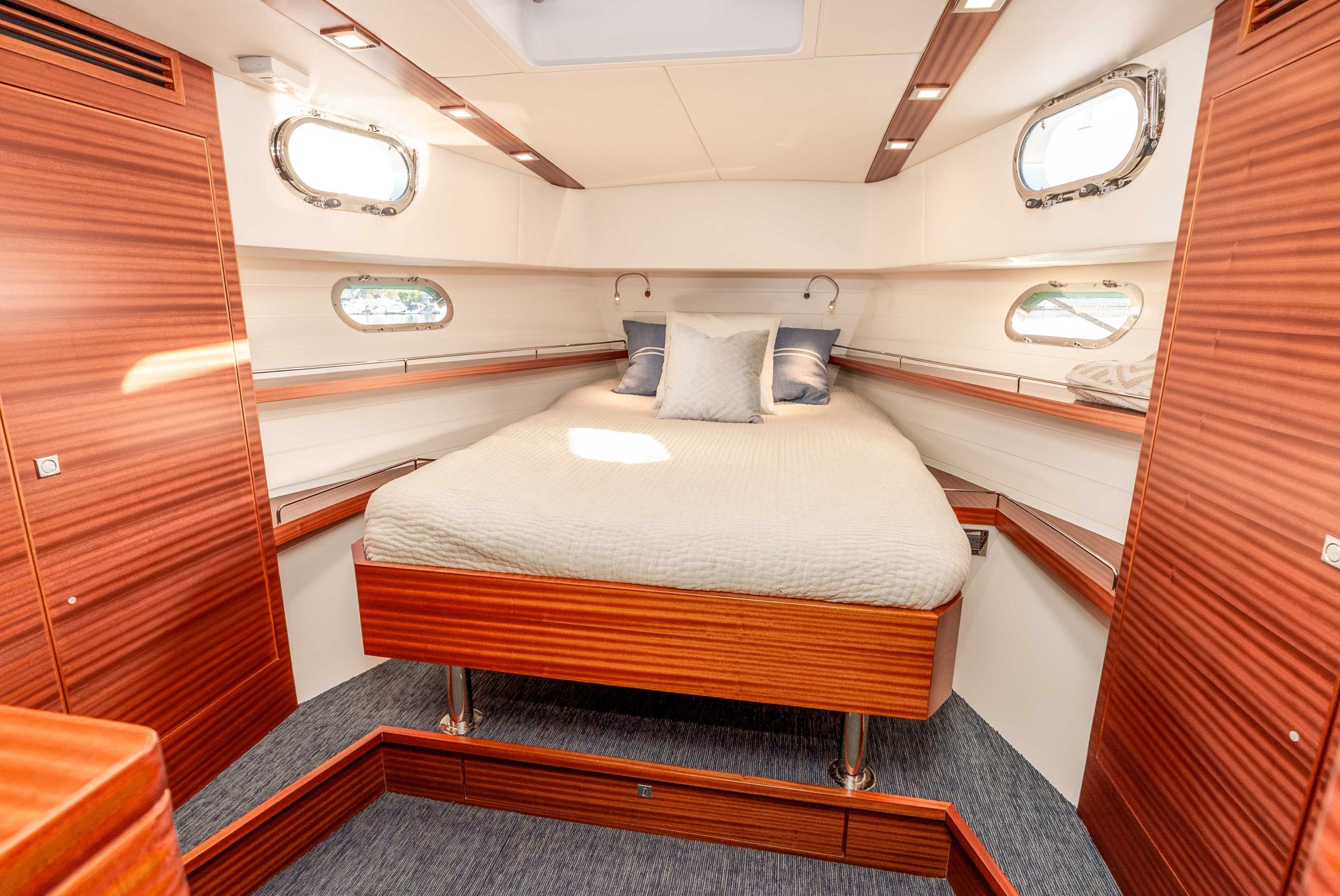

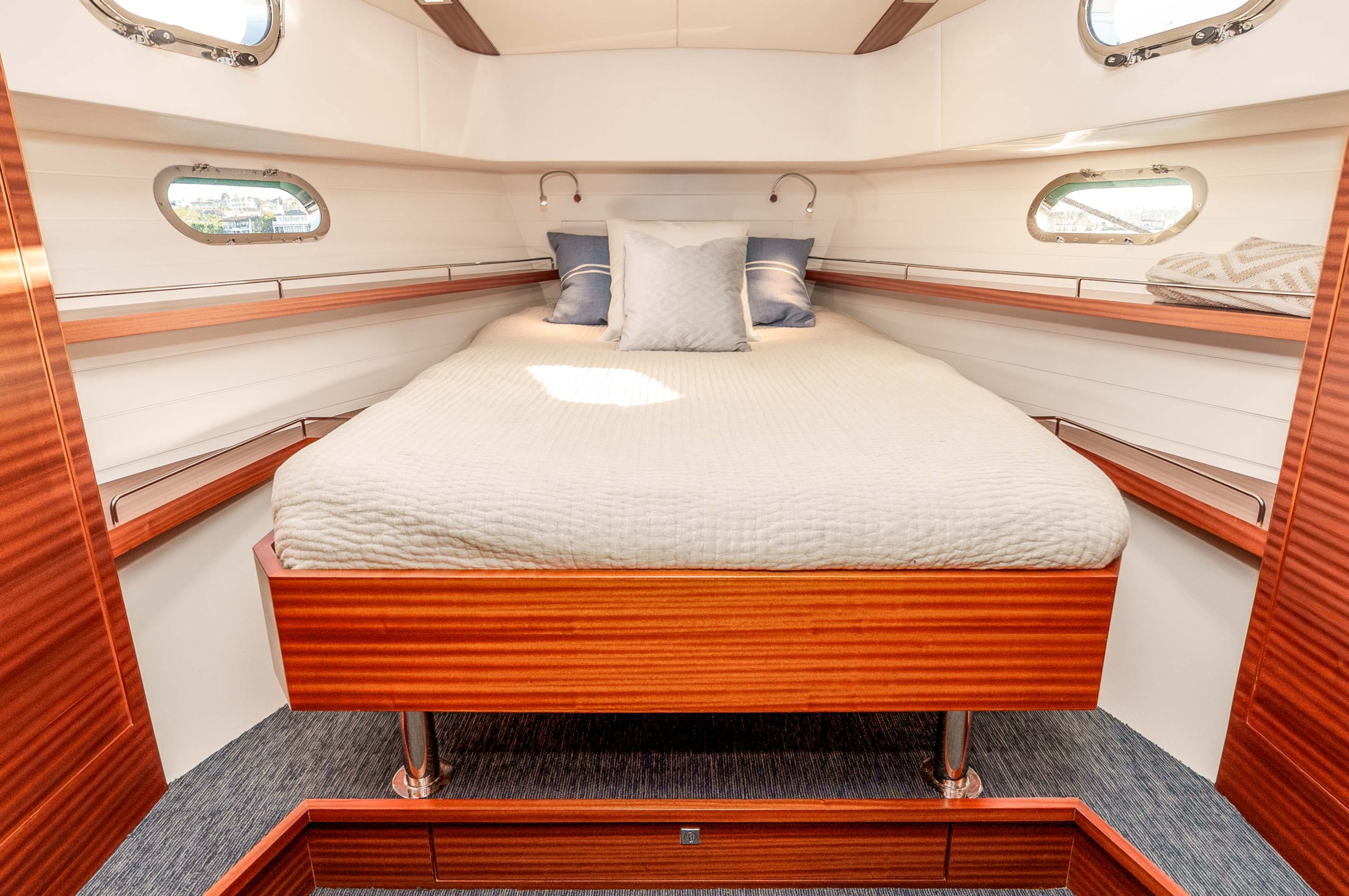

MASTER STATEROOM:

• Island queen berth with 9″ foam mattress with laminated teak trim
• White planked cabin sides with open shelving
• (2) Manship SS opening portlights
• Manship SS overhead hatch
• (2) BCM Catalina LED polished reading lights

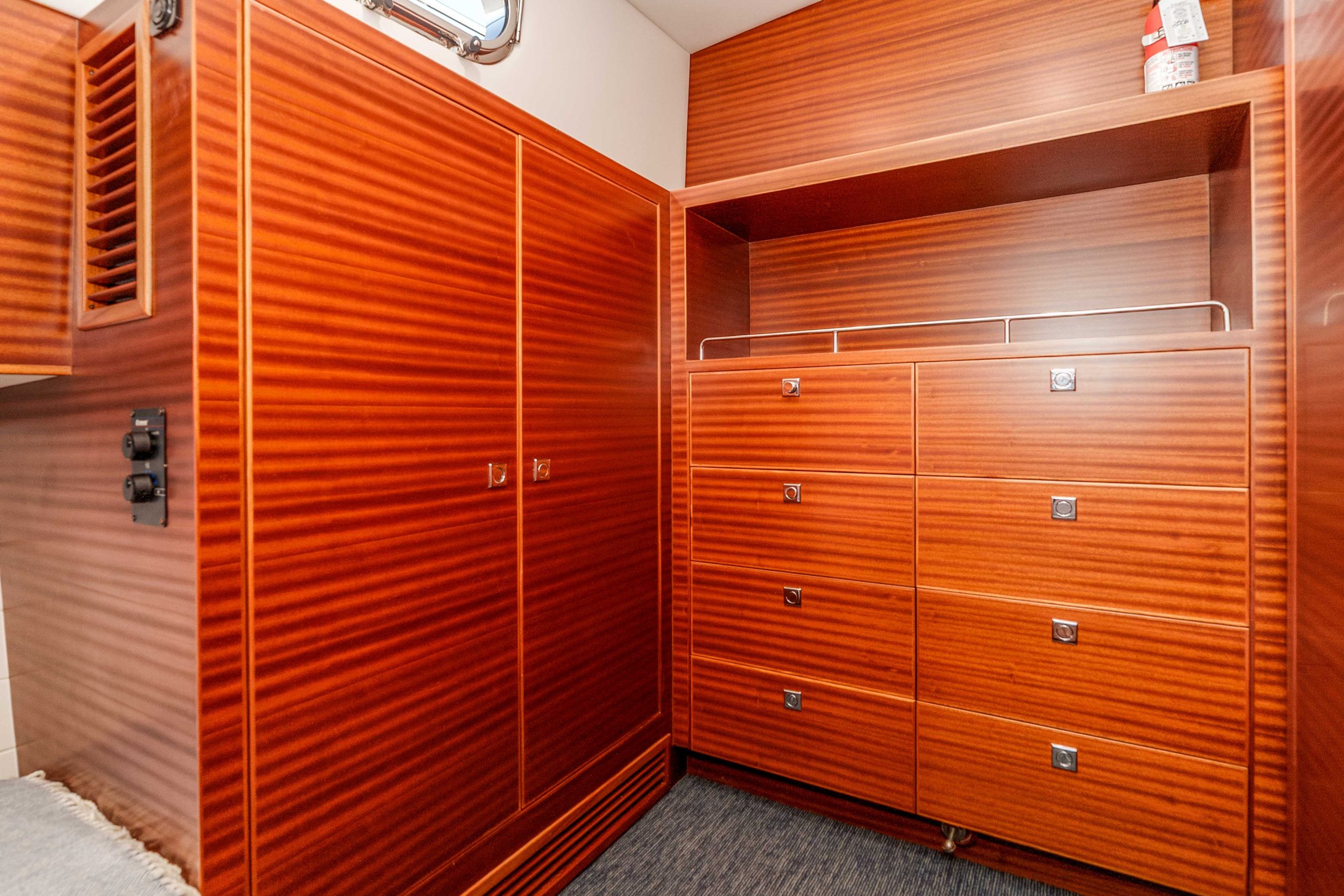

• Storage under berth and in bulkhead aft of berth
• Hanging locker
• Shelf locker
• Carpeted sole
• Sound deadening soft headliner panels

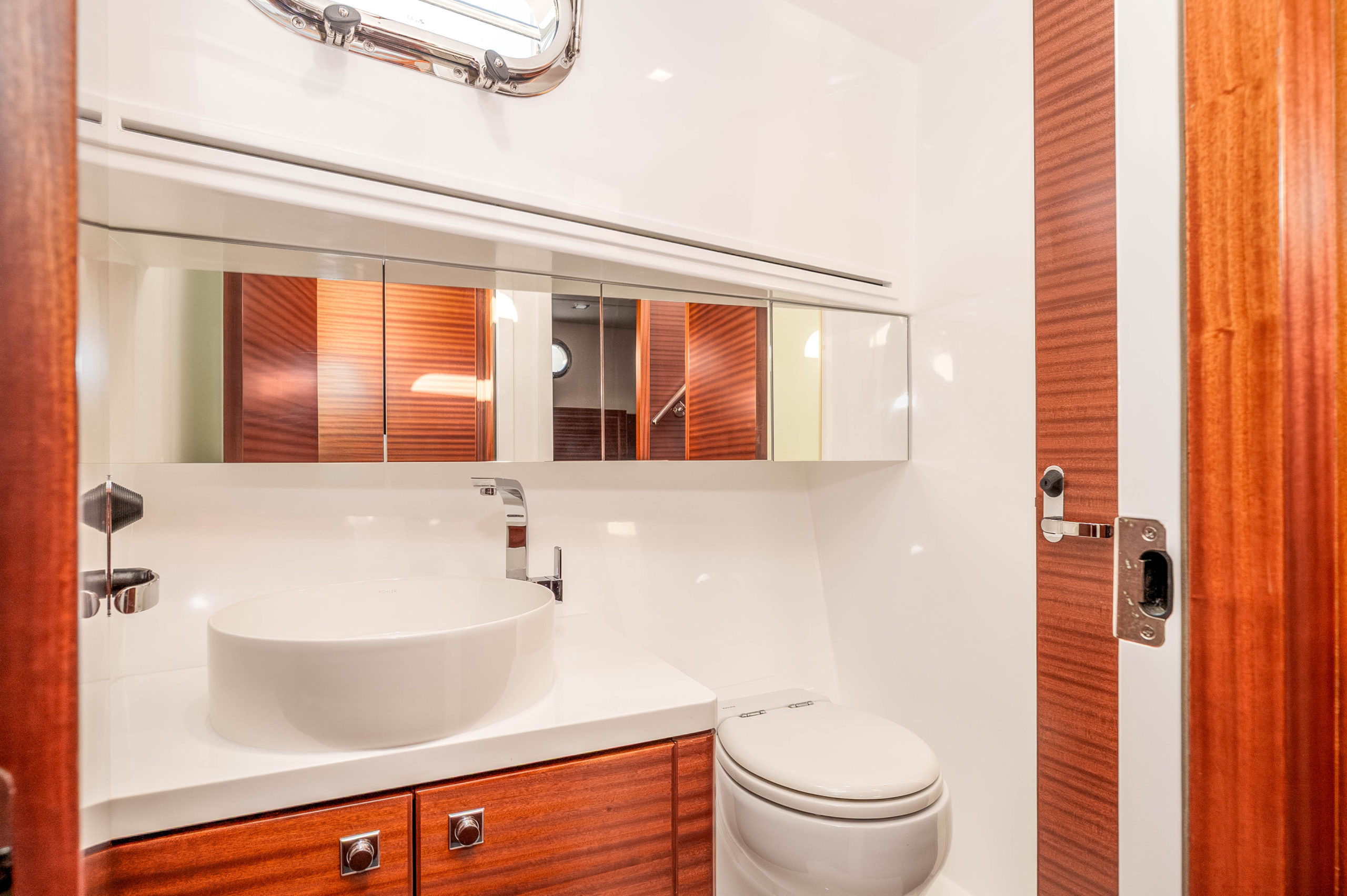

HEAD:

• Private access from master stateroom
• All molded FRP head
• Porcelain raised style sink
• Satin finish teak laminate cabinet below sink
• Opening portlight on side
• Upper mirrored medicine cabinet

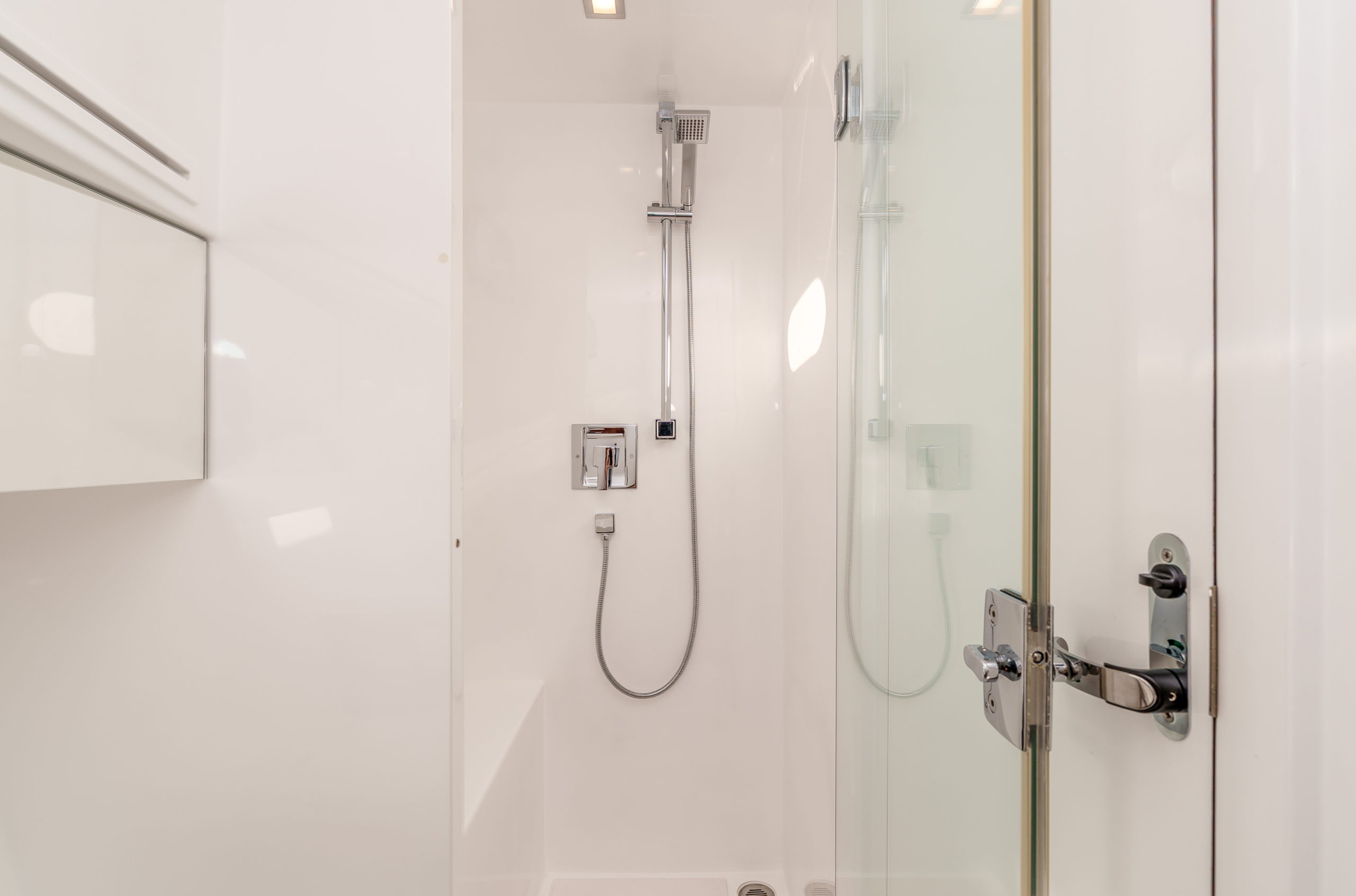

• Circular stall shower with clear enclosure
• Overhead hatch
• Rule DC ventilation blower
• Stainless steel towel bars
• Full height mirror on head door
• Moen faucets for sink/shower
• Tecma head

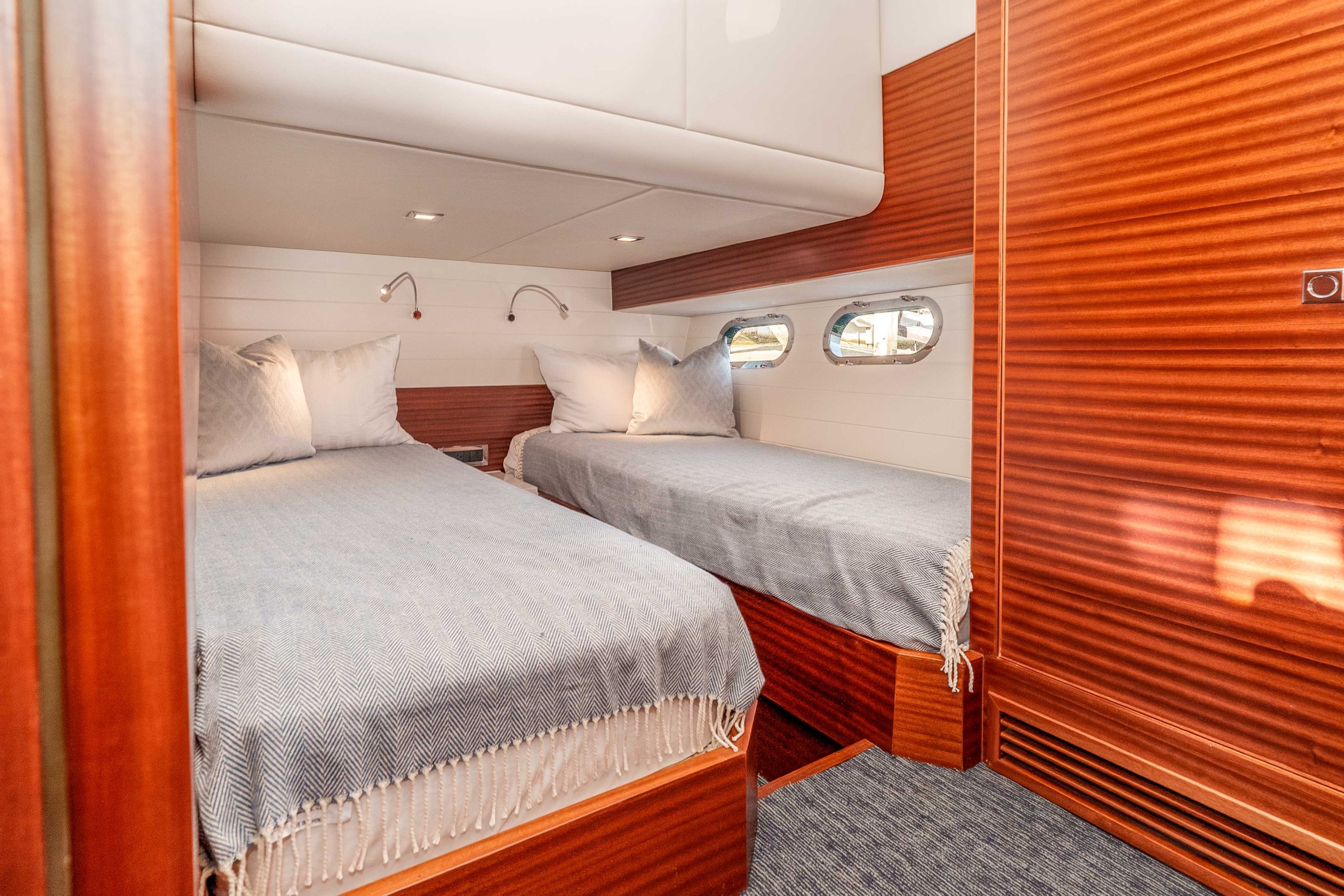

GUEST STATEROOM:

• Twin side by side berths with nightstand and engineered countertop
• 6″ foam mattresses and laminated teak trim berth
• LED Catalina reading lights
• Modern vinyl ceilings with LED lighting
• Drawer/storage under berth
• Storage lockers, drawers and shelves
• Combo white plank paneling and teak veneer side
• Carpeted sole with access to head ensuite or from companionway
• (2) Port lights

MISCELLANEOUS:

• 4 - Fenders
• 6 - Braided dock lines
• 6 - Life jackets
• Horn
• 24-inch life ring
• 3 - Hand-held fire extinguishers (1 Type-1   and  2 Type-2)
• Flare gun kit
