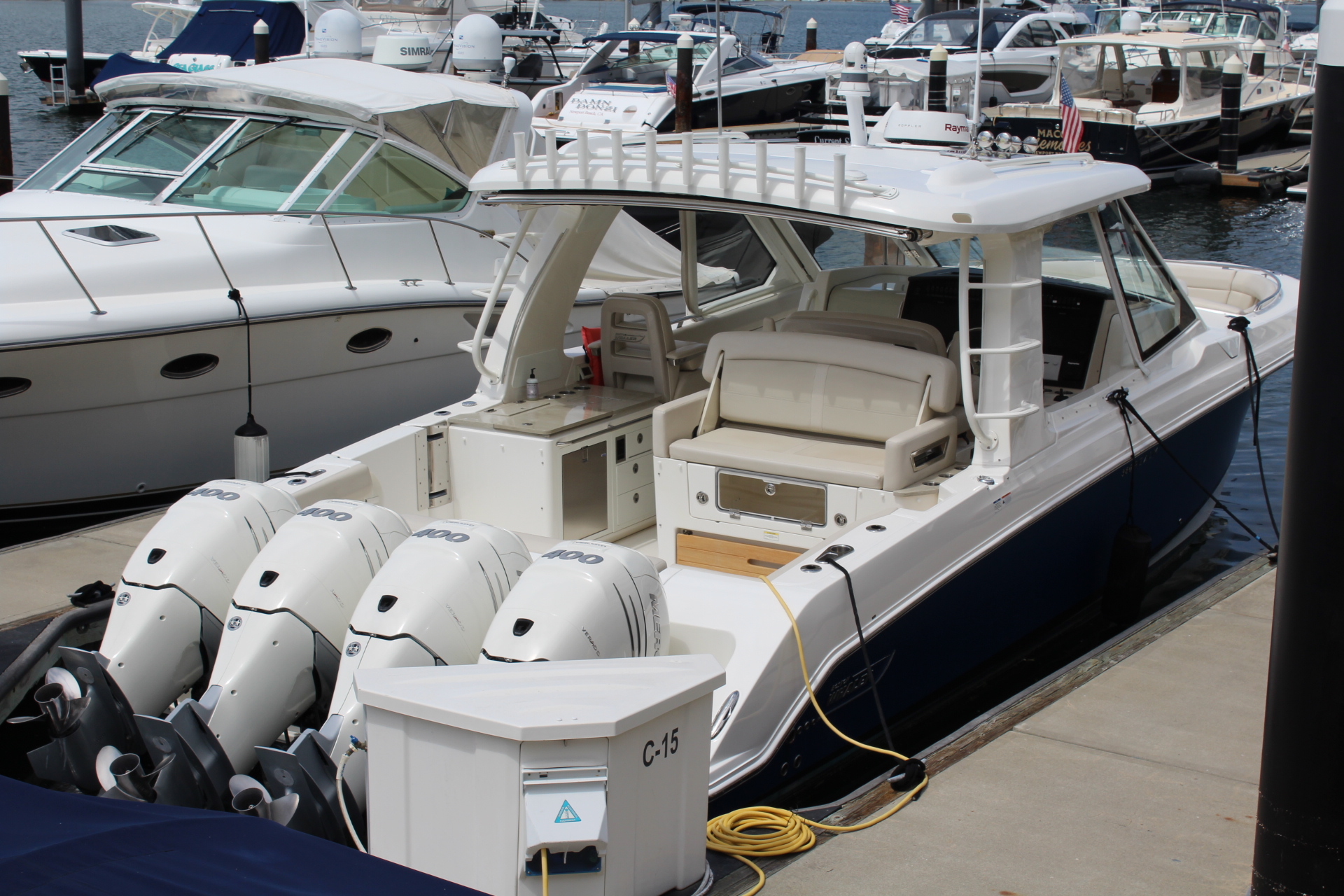

2019 38′ Boston Whaler 380 Realm

Guest Cabin: 1

Guest Head: 1

LOA: 38'

Beam: 11.67 ft

Max Bridge Clearance: 9'

Max Draft: 3.67'

Quadruple Engines: Mercury Verado 400CXXL's, 400hp (total 1,600hp), 387 hours

Cruising Speed: 30 knots

Max Speed:  52 knots

Range: 278 nm

Dry Weight: 17,000lb

Fuel: 450 gal

Fresh Water: 55 gal

Holding: 10 gal

Recent Upgrades

• Custom Powder Coated 10 Rod Rocket Launcher
• Dual Raymarine RV-220 RealVision Transducers
• AIS 700 Transceiver w/Antennae Splitter
• Sirius SatelliteSR200 InfoLink for MFDs
• (6) New AGM Batteries
• New Flir Camera (replacement)
• New Radar Array (replacement)
• Multicolored Underwater Lights
• Bow Thruster Joystick (replacement)
• Several New Bolsters (upholstery replacements)

Deck/Cockpit

• Front and Aft Covers
• Engine Covers
• Stainless steel cleats, stern cockpit with gunnel board hawse pipe (2), anchor locker (1)
• Stainless steel pull-up cleats: bow (2), midship spring line (2), crosstie cleats at transom (2)
• Acrylic transom door with stainless steel latch
• Bow tow eye
• Drink holders (stainless steel) bow (9), helm (4), prep station (3), second row seating (3), forward console lounge (3), cockpit gunnel boards (2)
• Full coaming bolsters
• Integral swim platform with recessed telescoping dive ladder and grab rail
• Lighting - blue and white LED courtesy lighting (cockpit)
• Lighting - machinery space LED lighting
• Molded fiberglass port side dive/boarding door with removable stainless steel dive ladder
• Rails: bow rail (low profile interior)(welded stainless steel)
• Rails: grab rails (stainless steel)
• Rails: heavy duty stainless steel rub rail
• Rod holders (gunnel mounted): starboard cockpit (2), port cockpit (2)
• Rod holders (transom mounted) (3)
• Self-bailing cockpit sole
• Thru hull anchor roller davit (stainless steel)
• Windlass: One (1) stainless steel Lewmar plow type anchor. Approximately 20 feet of galvanized chain and 225 feet of three strand nylon rode, and polished stainless steel bow roller
• Sureshade Sunshade-- Stern

Helm/Console

• Compass
• Dash visor with custom stitched cover and recessed storage tray with 1 USB and 12-V charging receptacles
• Drink holders (3)
• Electrical system switch panel with illuminated text
• Ignition switches: remote key switches in main DC panel cabinet with push button start/stop at helm
• Lockable acrylic sliding cabin entry door
• Lockable glovebox with 12-V receptacle and dual USB charging port
• Mercury® DTS dual binnacle controls featuring Shadow Mode for center engine with integrated engine trim controls
• Mercury® SmartCraft Vessel View Display color LCD display (network connections to Raymarine with Navigation Package)
• Molded console footrests and fold-down helm standing platform with maintenance free, anti-fatigue synthetic surface providing improved visibility and comfort for the captain/owner.
• Steering wheel (cast stainless steel with urethane grip, speed knob and tilt)
• Stereo: Fusion® MS-BB300 (integrated into Raymarine with navigation package) includes: Fusion stereo, AM/FM/VHF/MP3, USB Aux input, iPod/iPhone/Android compatible via integrated Bluetooth, Sirius XM, stereo remote controls with LCD display providing full audio control from the cabin, helm and bow.
• JL Audio waterproof speakers (exterior, 7.7" aft cockpit (2), 7.7" (component with Hardtop Tweeter), 7.7" coax and helm deck (4), 7.7" coax at bow (2), 10" sub-woofer at helm deck (1), 8" sub-woofer at bow (1), 6.5 coax in cabin (2) with JL Audio amplifiers).
• VHF Radio

Helm Electronics and Navigation

• Three Raymarine 16" Axiom touchscreen displays with Charts/Radar
• Trim Tab Control
• Radio Fusion head with JL AMP Speakers
• Raymarine Autopilot
• Raymarine Quantum2 closed dome radar
• LED Spotlight
• 4" Ritchie Compass at Helm

Storage

• Bow anchor locker with drains and LED lighting
• Starboard side storage cabinet with shelves
• Port side cedar-lined storage cabinet
• Port side compartment under settee
• Canvas enclosure or lifejacket storage in hardtop
• Electronics box in hardtop
• Forward coaming pockets
• Glovebox at helm
• Head storage compartment
• Insulated 260qt built-in cooler/storage under second row seating with dual access
• Insulated 70qt cooler/storage in port side bow gunnel
• Insulated in-floor fishboxes with pump-out aft (2)
• Prep station drawer with 5-gallon bucket/trash receptacle
• Prep station drawer storage
• Second row seating port side pocket and starboard pull-out grilling accessory storage
• Storage compartments (midship in coaming)
• Storage compartment (transom mounted tilt out)
• Storage under bow seat with LED lighting (3 compartments with remote latch release)

Hardtop / Windshield

• Hardtop frame custom powder-coated aluminum frame integrated into the deck providing unobstructed walkways
• Canvas enclosure or lifejacket storage
• Hardtop hatches (opening) integrated into the hardtop
• Ladder access to hardtop
• Lighting (flood light) recessed LED lighting for bow area (2)
• Lighting (flood lights) recessed LED lighting for cockpit area (2)
• Red/white LED courtesy map light (1)
• Blue/white LED overhead courtesy lighting (6)
• LED navigation lights recessed in the hardtop
• Lockable electronics box
• Outrigger ready
• Tempered glass windshield with power actuated vent, opening walk-through windshield with separate lower door providing weather protection
• Windshield defogger system (integrated into the hardtop)
• Windshield wiper: dual pantograph with wash system and intermittent/multi-speed control

Prep Center

• 120V GFI outlet
• Corian countertop
• Deluxe port side helm seat deck seat with armrests, adjustable slide and swivel enabling rotation of the seat inboard
• Drink holders (3)
• Kenyon Electric grill with solid surface cover with custom popup rotation providing a prep counter while grilling
• Freshwater sink with recessed cutting board cover and fold away polished faucet with hot and cold water
• Grab rail: stainless steel
• Isotherm Refrigerator: stainless steel (12V/120V)(2.3 cubic ft.)
• Storage compartment built into solid surface behind the grill
• Storage drawer with 5-gallon bucket/trash receptacle
• Storage drawers

Cabin Interior

• Drop down dining table to form a double berth
• Molded gelcoat interior with wood flooring
• One (1) head on the starboard side of the interior
• Pull out sink faucet for shower.
• Courtesy lights, overhead and cabin lights
• Two Air Conditioning units. One for cockpit air and one for interior
• Isotherm Refrigerator: stainless steel (12V/120V)(2.3 cubic ft.)
• One Jensen 24 inch Television

Head

• 120V outlet
• 750 GPH shower sump
• Accent wall
• Flooring: solid surface tile
• Full length mirror mounted on door
• Lighting - LED overhead
• Pullout showerhead with mixer valve and vertical adjustment
• Shower curtain
• Sink: vessel sink with hot and cold faucet
• Solid surface vanity countertop
• Storage cabinet
• Toilet paper holder
• VacuFlush toilet, holding tank, dockside pump-out, overboard discharge and tank level indicator
• Vanity grab rail
• Ventilation fan

Mechanical / Engines

• 400hp Mercury Verado Four Stroke engines with hydraulic power steering and Shadow Mode technology
• Aft 445-gallon aluminum fuel tank
• Advanced battery management system (electric switches with push button paralleling)
• Air conditioner (cabin)(12,000 BTU, reverse cycle)
• Air conditioner (cockpit)(18,000 BTU, reverse cycle)
• Two (2) Pro Mariner, Pro Nautic 12-40 chargers
• Battery system includes: Four (4) Duracell AGM 31 series battery chargers in aft bilge area. Two (2) AGM 31 series under forward berth for the bow thruster
• Battery trays
• Bilge pump: high water pump with alarm (2000 GPH aft)
• Bilge pump: automatic (1100 GPH fwd, 2000 GPH aft)
• Bonding system for underwater through hull fittings
• Cast bronze thru hulls, seacocks and sea strainers (below waterline)
• Cast stainless steel thru hulls (above waterline)
• Electric dual polished stainless steel trumpet horns
• Electric trim tabs with indicator (Auto Glide, Dynamic Running Surface, dual ram)
• Engine fuel / water separators
• Freshwater dockside hookup and tank level indicator integrated into Vessel View for hot and cold pressurized water system
• Freshwater system with 60-gallon tank
• Freshwater transom / dive door shower with hot and cold mixer
• Freshwater stainless steel washdown faucet located in anchor locker and cockpit
• Westerbeke generator with fire suppression system, automatic with manual override
• Machinery space lighting
• Freshwater Manifold plumbing system with individual valve per circuit
• Propellers: stainless steel three blade
• Raw-water washdown with stainless steel faucet (located in cockpit)
• Shore power inlets (dual 30 amp, isolation transformers and 50ft shore power cord included)
• Transducer mount area and pocket for flush mounting B275 transducer
• Kuuma Water heater (6 gallons) 110 electric
